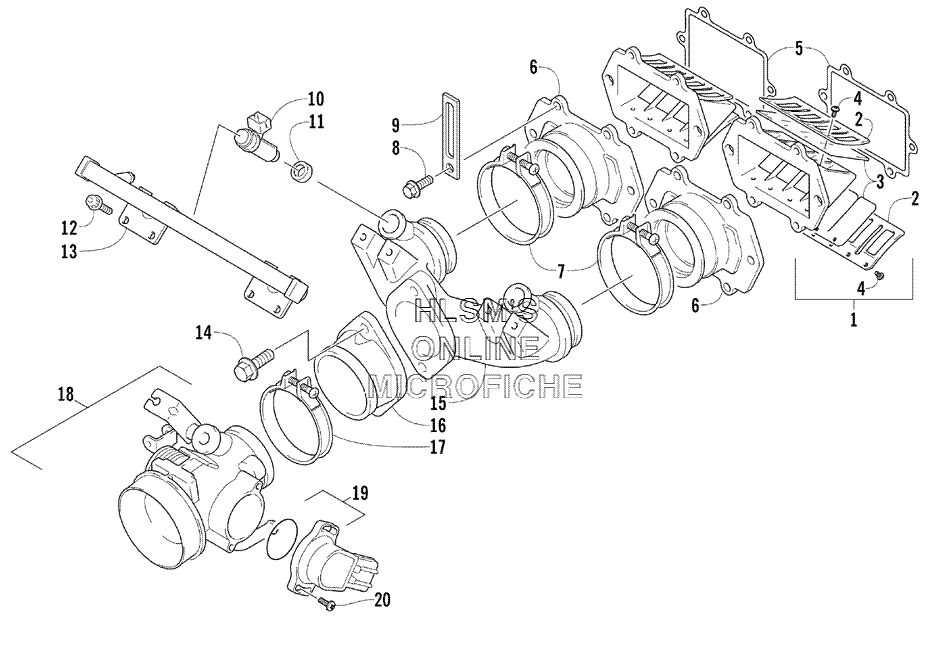

REED VALVE/THROTTLE BODY ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (RED) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-046 VALVE, REED, ASSEMBLY (INC. 2, 4)
    VALVE, REED, ASSEMBLY (INC. 2, 4)
  • 2
    3007-047 STOPPER
    STOPPER
  • 3
    3007-048 VALVE, REED
    VALVE, REED
  • 4
    3004-506 SCREW
    SCREW
  • 5
    3005-879 GASKET, REED VALVE
    GASKET, REED VALVE
  • 6
    3006-713 PIPE, INTAKE
    PIPE, INTAKE
  • 7
    3004-463 CLAMP
    CLAMP
  • 8
    3004-341 BOLT
    BOLT
  • 9
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 10
    3007-051 INJECTOR, FUEL, ASSEMBLY (CIRCLE)
    INJECTOR, FUEL, ASSEMBLY (CIRCLE)
  • 10
    3007-052 INJECTOR, FUEL, ASSEMBLY (SQUARE)
    INJECTOR, FUEL, ASSEMBLY (SQUARE)
  • 10
    3007-053 INJECTOR, FUEL, ASSEMBLY (TRIANGLE)
    INJECTOR, FUEL, ASSEMBLY (TRIANGLE)
  • 11
    3006-126 CUSHION, INNERJECTOR
    CUSHION, INNERJECTOR
  • 12
    3423-418 BOLT
    BOLT
  • 13
    3007-054 PIPE, DELIVERY
    PIPE, DELIVERY
  • 14
    3007-055 BOLT
    BOLT
  • 15
    3007-050 MANIFOLD, INTAKE
    MANIFOLD, INTAKE
  • 16
    3007-049 FLANGE, INTAKE MANIFOLD
    FLANGE, INTAKE MANIFOLD
  • 17
    3004-463 CLAMP
    CLAMP
  • 18
    3007-056 BODY, THROTTLE, ASSEMBLY (INC. 19, 20)
    BODY, THROTTLE, ASSEMBLY (INC. 19, 20)
  • 19
    3006-940 SENSOR, THROTTLE, ASSEMBLY
    SENSOR, THROTTLE, ASSEMBLY
  • 20
    3007-026 SCREW
    SCREW
