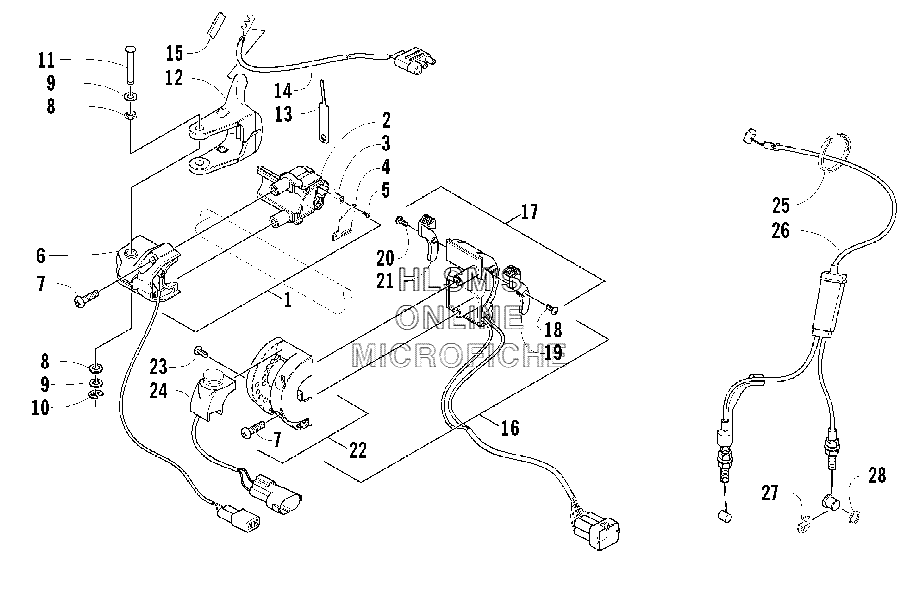

CONTROL ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-632 CONTROL, THROTTLE ASSEMBLY (INC. 2-6 AND TWO NO. 7)
    CONTROL, THROTTLE ASSEMBLY (INC. 2-6 AND TWO NO. 7)
  • 2
    0609-576 CONTROL, HOUSING HALF (INC. 3-5)
    CONTROL, HOUSING HALF (INC. 3-5)
  • 3
    0609-611 CLIP, RETAINING
    CLIP, RETAINING
  • 4
    0609-615 PLATE
    PLATE
  • 5
    0609-612 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    0609-633 CONTROL, SWITCH HALF
    CONTROL, SWITCH HALF
  • 7
    0609-604 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    0609-501 SEAL, THROTTLE LEVER
    SEAL, THROTTLE LEVER
  • 9
    0609-036 WASHER
    WASHER
  • 10
    0609-040 E-RING
    E-RING
  • 11
    0609-577 AXLE, LEVER THROTTLE
    AXLE, LEVER THROTTLE
  • 12
    0609-565 LEVER, THROTTLE
    LEVER, THROTTLE
  • 13
    1639-963 TOOL, REMOVAL THROTTLE CABLE KIT
    TOOL, REMOVAL THROTTLE CABLE KIT
  • 14
    0609-726 ELEMENT, THUMBWARMER
    ELEMENT, THUMBWARMER
  • 15
    0617-248 PAD, INSULATOR
    PAD, INSULATOR
  • 16
    0609-628 CONTROL, STOP SWITCH/WARMER ASSEMBLY (INC. TWO NO. 7 AND 17-24)
    CONTROL, STOP SWITCH/WARMER ASSEMBLY (INC. TWO NO. 7 AND 17-24)
  • 17
    0609-636 CONTROL, WARMER HALF (INC. 18-21)
    CONTROL, WARMER HALF (INC. 18-21)
  • 18
    0609-605 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0609-573 KNOB, HANDWARMER
    KNOB, HANDWARMER
  • 20
    0609-606 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0609-572 KNOB, THUMBWARMER
    KNOB, THUMBWARMER
  • 22
    0609-635 CONTROL, STOP SWITCH HALF (INC. 23-24)
    CONTROL, STOP SWITCH HALF (INC. 23-24)
  • 23
    0609-607 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    0123-788 CABLE TIE 8 IN.
    CABLE TIE 8 IN.
  • 26
    0687-167 CABLE, THROTTLE
    CABLE, THROTTLE
  • 27
    0124-057 E-RING
    E-RING
  • 28
    0124-056 WASHER
    WASHER
