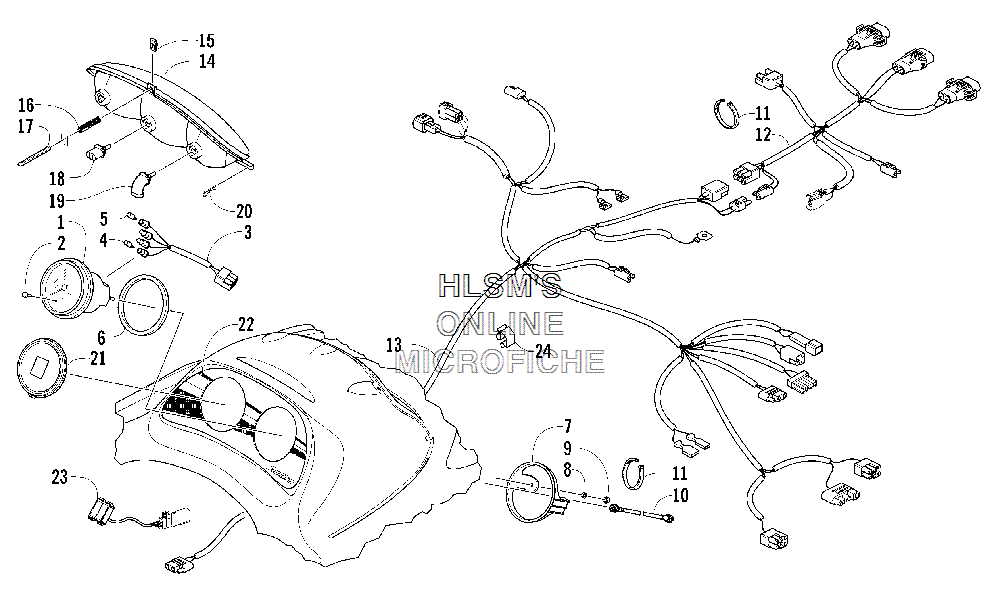

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Panther 660 TRAIL - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0620-238 SPEEDOMETER (INC. 2, 5)
    SPEEDOMETER (INC. 2, 5)
  • 2
    0620-073 KNOB, TRIPMETER
    KNOB, TRIPMETER
  • 3
    0620-151 HARNESS, BULB, SPEEDOMETER (INC. 4, 5)
    HARNESS, BULB, SPEEDOMETER (INC. 4, 5)
  • 4
    0620-149 BULB, INNERDICATOR
    BULB, INNERDICATOR
  • 5
    0230-020 BULB, INSTRUMENT
    BULB, INSTRUMENT
  • 6
    0620-135 RING, RUBBER CUSHION
    RING, RUBBER CUSHION
  • 7
    0620-134 RING, RETAINING BRACKET
    RING, RETAINING BRACKET
  • 8
    8050-212 WASHER
    WASHER
  • 9
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 10
    0620-269 CABLE, SPEEDOMETER
    CABLE, SPEEDOMETER
  • 11
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 12
    1686-194 HARNESS, HOOD
    HARNESS, HOOD
  • 13
    1686-150 HARNESS, MAIN
    HARNESS, MAIN
  • 14
    0609-250 LENS/REFLECTOR, HEADLIGHT
    LENS/REFLECTOR, HEADLIGHT
  • 15
    0623-757 NUT, SPEED
    NUT, SPEED
  • 16
    0623-466 SPRING, ADJUSTMENT
    SPRING, ADJUSTMENT
  • 17
    0623-467 SCREW, THUMB
    SCREW, THUMB
  • 18
    0609-252 BULB, HEADLIGHT, LOW BEAM
    BULB, HEADLIGHT, LOW BEAM
  • 19
    0609-251 BULB, HEADLIGHT, HIGH BEAM
    BULB, HEADLIGHT, HIGH BEAM
  • 20
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 21
    2606-069 PLUG, GAUGE HOLE
    PLUG, GAUGE HOLE
  • 22
    6611-607 DECAL, INSTRUMENT, HOOD
    DECAL, INSTRUMENT, HOOD
  • 23
    0630-216 LIGHT, INNERDICATOR
    LIGHT, INNERDICATOR
  • 24
    1623-200 CLIP, U
    CLIP, U
