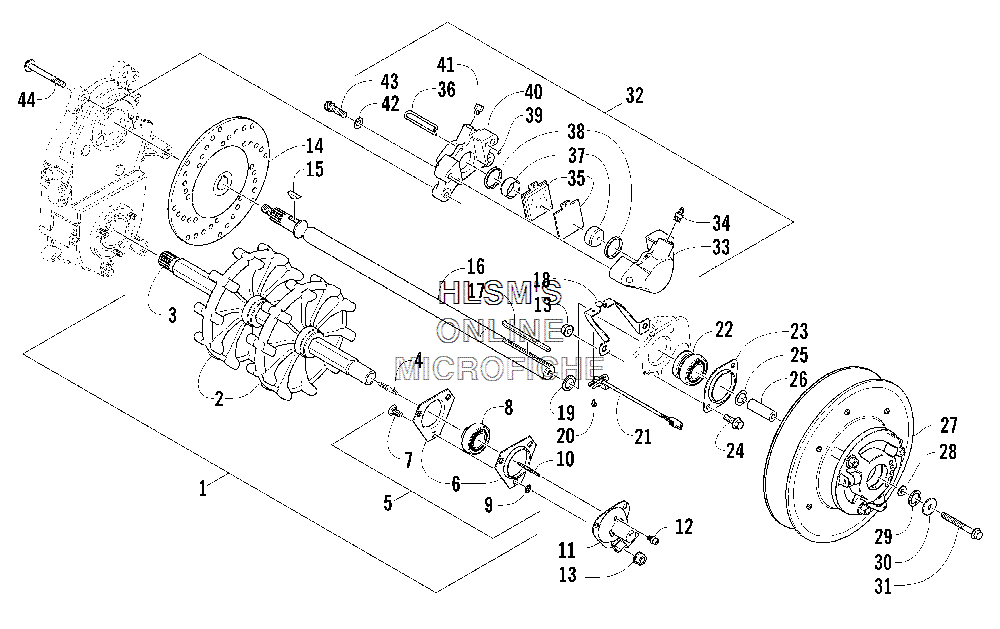

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Panther 660 TOURING INTERNATIONAL - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-146 TRACK DRIVE ASSEMBLY (INC. 2, 9)
    TRACK DRIVE ASSEMBLY (INC. 2, 9)
  • 2
    1602-507 SPROCKET, DRIVE
    SPROCKET, DRIVE
  • 3
    1602-852 DRIVESHAFT
    DRIVESHAFT
  • 4
    0120-247 BUSHING, DRIVE
    BUSHING, DRIVE
  • 5
    0702-567 PLATE, FLANGE, BEARING ASSEMBLY (INC. 6, 9)
    PLATE, FLANGE, BEARING ASSEMBLY (INC. 6, 9)
  • 6
    0602-198 PLATE, FLANGE
    PLATE, FLANGE
  • 7
    8011-130 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 8
    1602-374 BEARING, 1 IN. W/LOCK COLLAR
    BEARING, 1 IN. W/LOCK COLLAR
  • 9
    0623-810 RING, SOLDER
    RING, SOLDER
  • 10
    0602-154 CABLE, ADAPTER
    CABLE, ADAPTER
  • 11
    0720-005 ADAPTER, DRIVE (INC. 12)
    ADAPTER, DRIVE (INC. 12)
  • 12
    0104-062 FITTING, GREASE
    FITTING, GREASE
  • 13
    8048-426 NUT, LOCK
    NUT, LOCK
  • 14
    1602-205 DISC, BRAKE
    DISC, BRAKE
  • 15
    0602-598 KEY
    KEY
  • 16
    0702-810 SHAFT, DRIVEN
    SHAFT, DRIVEN
  • 17
    0101-076 KEY
    KEY
  • 18
    3706-176 BRACKET, SPEED SENSOR
    BRACKET, SPEED SENSOR
  • 19
    1602-396 MAGNET, COLLAR
    MAGNET, COLLAR
  • 20
    0623-137 SCREW, TAPTITE
    SCREW, TAPTITE
  • 21
    0630-008 SWITCH, MAGNETIC CARBURETOR ASSEMBLY
    SWITCH, MAGNETIC CARBURETOR ASSEMBLY
  • 22
    1602-879 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
    BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
  • 23
    0602-892 PLATE, FLANGE
    PLATE, FLANGE
  • 24
    8020-132 SCREW, CAP
    SCREW, CAP
  • 25
    0623-118 WASHER
    WASHER
  • 25
    0623-119 WASHER
    WASHER
  • 26
    0648-066 SHAFT, STUB
    SHAFT, STUB
  • 27
    0726-230 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 28
    0123-053 WASHER
    WASHER
  • 29
    0123-578 WASHER
    WASHER
  • 30
    0123-019 WASHER
    WASHER
  • 31
    8020-142 SCREW, CAP
    SCREW, CAP
  • 32
    0602-829 CALIPER, BRAKE, ASSEMBLY (INC. 33, 43)
    CALIPER, BRAKE, ASSEMBLY (INC. 33, 43)
  • 34
    0602-707 SCREW, BLEED, ASSEMBLY
    SCREW, BLEED, ASSEMBLY
  • 35
    0702-229 PAD, BRAKE, SET (INC. 36)
    PAD, BRAKE, SET (INC. 36)
  • 36
    1602-754 PIN, RETAINING
    PIN, RETAINING
  • 37
    0602-708 PISTON
    PISTON
  • 38
    1602-755 O-RING, SQUARE
    O-RING, SQUARE
  • 39
    0602-729 O-RING, HOUSING
    O-RING, HOUSING
  • 41
    0602-590 FITTING, ADAPTER
    FITTING, ADAPTER
  • 42
    8050-272 WASHER
    WASHER
  • 43
    1623-352 SCREW, CAP
    SCREW, CAP
  • 44
    8020-315 SCREW, CAP
    SCREW, CAP
