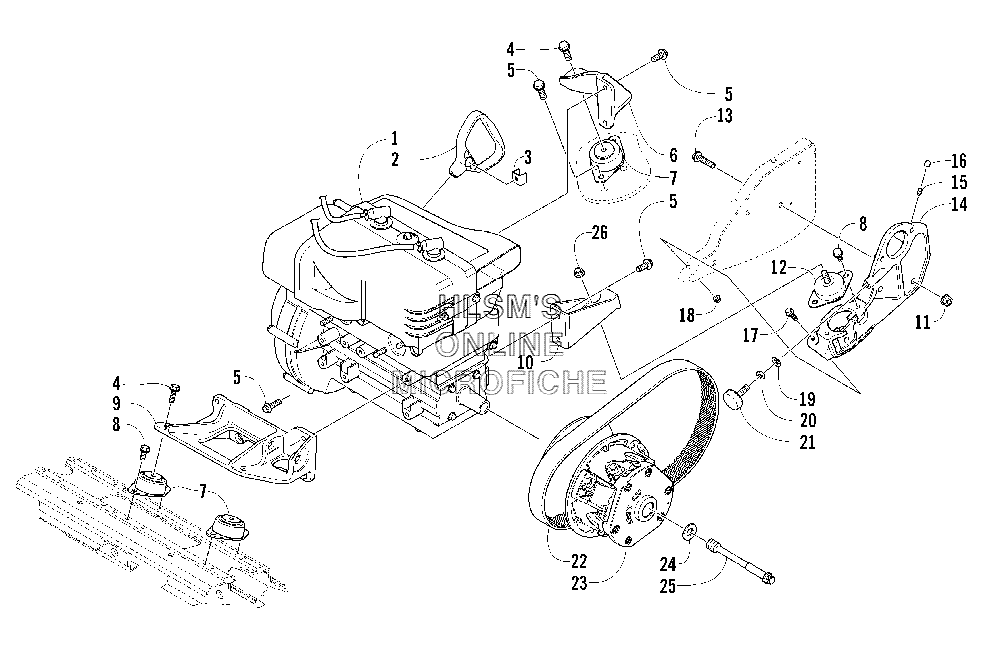

ENGINE AND RELATED PARTS для Arctic Cat Panther 570 INTERNATIONAL - 2006 года выпуска`
-
№АртикулНазвание
-
10662-420 ENGINE, AA56A5ENGINE, AA56A5
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48020-220 SCREW, CAPSCREW, CAP
-
58020-130 SCREW, CAPSCREW, CAP
-
60708-132 BRACKET, MOUNTING, ENGINE (RIGHT/REAR)BRACKET, MOUNTING, ENGINE (RIGHT/REAR)
-
70608-347 MOUNT, ENGINEMOUNT, ENGINE
-
80623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90745-154 BRACKET, MOUNTING, ENGINE (FRONT)BRACKET, MOUNTING, ENGINE (FRONT)
-
100708-133 BRACKET, MOUNTING, ENGINE (LEFT/REAR)BRACKET, MOUNTING, ENGINE (LEFT/REAR)
-
118048-486 NUT, LOCKNUT, LOCK
-
120708-145 MOUNT, ENGINE, ASSYMOUNT, ENGINE, ASSY
-
138020-224 SCREW, CAPSCREW, CAP
-
140708-139 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 15, 16)BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 15, 16)
-
151623-010 FITTING, GREASEFITTING, GREASE
-
160623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
178020-040 SCREW, CAPSCREW, CAP
-
188048-366 NUT, LOCKNUT, LOCK
-
198050-272 WASHERWASHER
-
200123-191 NUTNUT
-
210608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
220627-021 BELT, DRIVEBELT, DRIVE
-
230725-496 CLUTCH, DRIVECLUTCH, DRIVE
-
240623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
250623-804 BOLT, CLUTCHBOLT, CLUTCH
-
268047-486 NUT, LOCKNUT, LOCK
