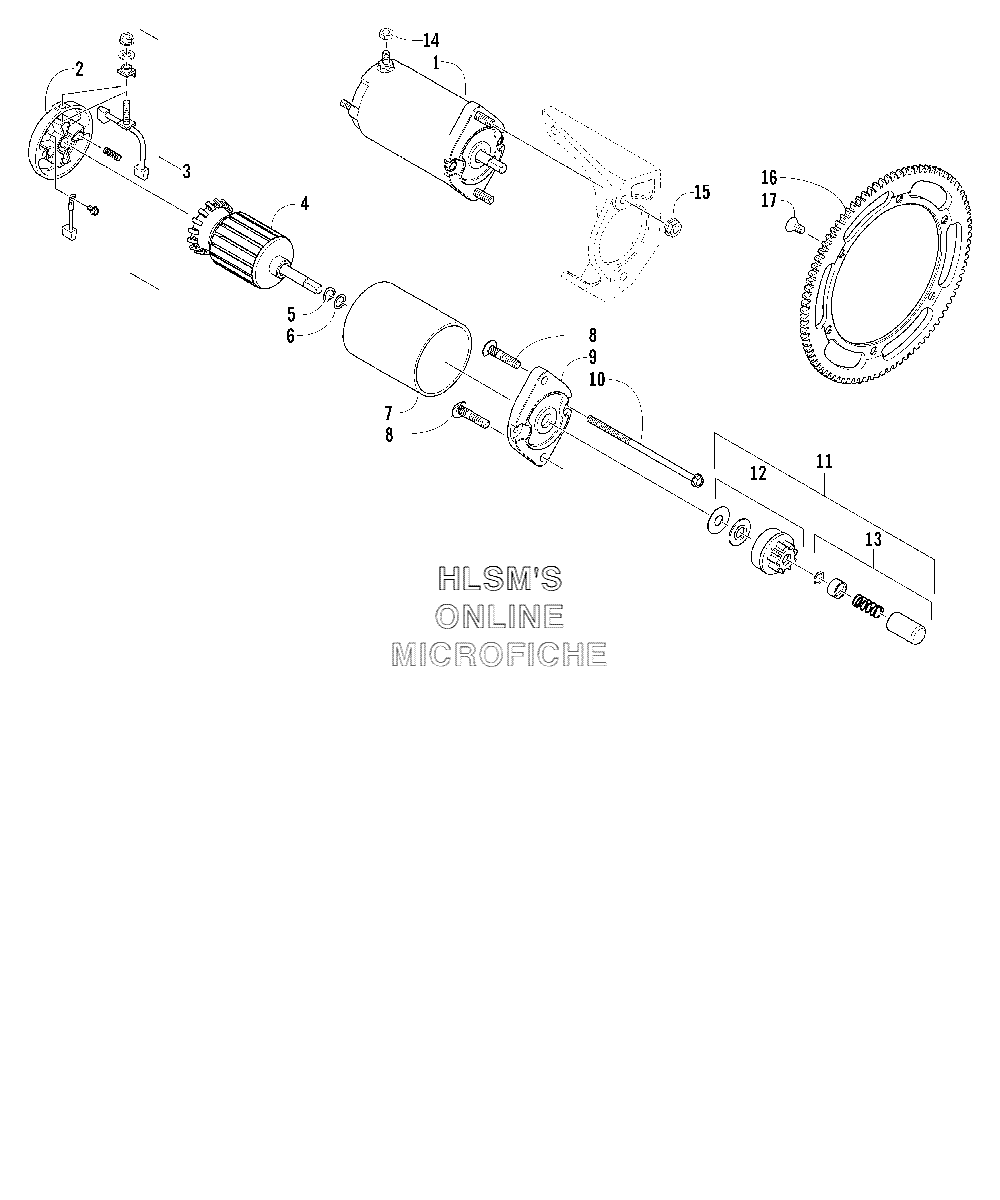

ELECTRIC START - STARTER MOTOR ASSEMBLY (OPTIONAL) для Arctic Cat Panther 370 INTERNATIONAL - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    1639-908 ELECTIC START KIT
    ELECTIC START KIT
  • 1
    0745-052 MOTOR, STARTER (INC. 2 13)
    MOTOR, STARTER (INC. 2 13)
  • 2
    0645-277 CAP, COMMUTATOR (INC. 3)
    CAP, COMMUTATOR (INC. 3)
  • 3
    0645-275 BRUSH AND SPRING KIT
    BRUSH AND SPRING KIT
  • 4
    0645-189 ARMATURE
    ARMATURE
  • 5
    0645-126 WASHER, WAVE
    WASHER, WAVE
  • 6
    0645-127 WASHER, THRUST
    WASHER, THRUST
  • 8
    0623-093 BOLT, RIBBED
    BOLT, RIBBED
  • 9
    0645-188 CAP, DRIVE
    CAP, DRIVE
  • 10
    0645-191 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
  • 11
    0745-145 PINION DRIVE ASSEMBLY (INC. 12 13)
    PINION DRIVE ASSEMBLY (INC. 12 13)
  • 12
    0745-146 PINION DRIVE KIT
    PINION DRIVE KIT
  • 13
    0645-186 PINION STOPPER KIT
    PINION STOPPER KIT
  • 14
    0623-122 NUT
    NUT
  • 15
    8048-426 NUT, LOCK
    NUT, LOCK
  • 16
    0645-168 GEAR, RING
    GEAR, RING
  • 17
    1623-128 SCREW, MACHINE
    SCREW, MACHINE
