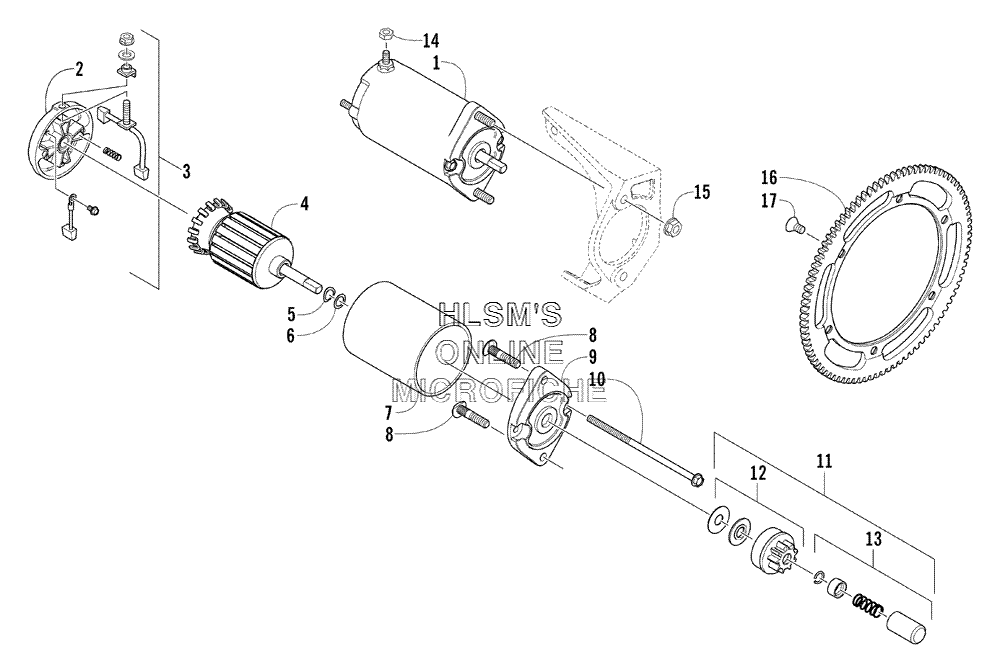

ELECTRIC START - STARTER MOTOR ASSEMBLY (OPTIONAL) для Arctic Cat Panther 370 (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10702-450 DROPCASE W/STUDS (INC. 2-5)DROPCASE W/STUDS (INC. 2-5)
-
20623-317 STUDSTUD
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
68047-426 NUT, LOCKNUT, LOCK
-
78011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
88011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
98050-252 WASHERWASHER
-
108020-135 SCREW, CAPSCREW, CAP
-
110602-479 PLUG, DRAIN MAGNETICPLUG, DRAIN MAGNETIC
-
121602-213 O-RINGO-RING
-
130602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
140623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
158050-272 WASHERWASHER
-
160123-150 NUTNUT
-
171602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
188011-135 BOLT, CARRIAGEBOLT, CARRIAGE
-
190616-964 GUARD, DROPCASEGUARD, DROPCASE
-
208048-366 NUT, LOCKNUT, LOCK
-
210702-554 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
221602-243 COVER, DROPCASECOVER, DROPCASE
-
230702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
240602-021 SEAL, O-RINGSEAL, O-RING
-
250623-542 PIN, SPRINGPIN, SPRING
-
261602-151 COVER, OIL VENTCOVER, OIL VENT
-
270623-081 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280602-085 FORK, SHIFTFORK, SHIFT
-
290602-437 SEAL, DROPCASESEAL, DROPCASE
-
300623-293 PLUG, DRAINPLUG, DRAIN
-
310605-014 O-RING, OIL LEVEL STICK TUBEO-RING, OIL LEVEL STICK TUBE
-
320623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
331602-107 STICK, OIL LEVELSTICK, OIL LEVEL
-
341602-106 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
358020-134 SCREW, CAPSCREW, CAP
-
360623-122 NUT, LOCKNUT, LOCK
-
370602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
388002-045 SCREW, CAPSCREW, CAP
-
398050-222 WASHERWASHER
-
400602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
410602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
-
420623-525 WASHERWASHER
-
430702-129 ROLLER, CHAIN TIGHTENER (INC. 44)ROLLER, CHAIN TIGHTENER (INC. 44)
-
440602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
