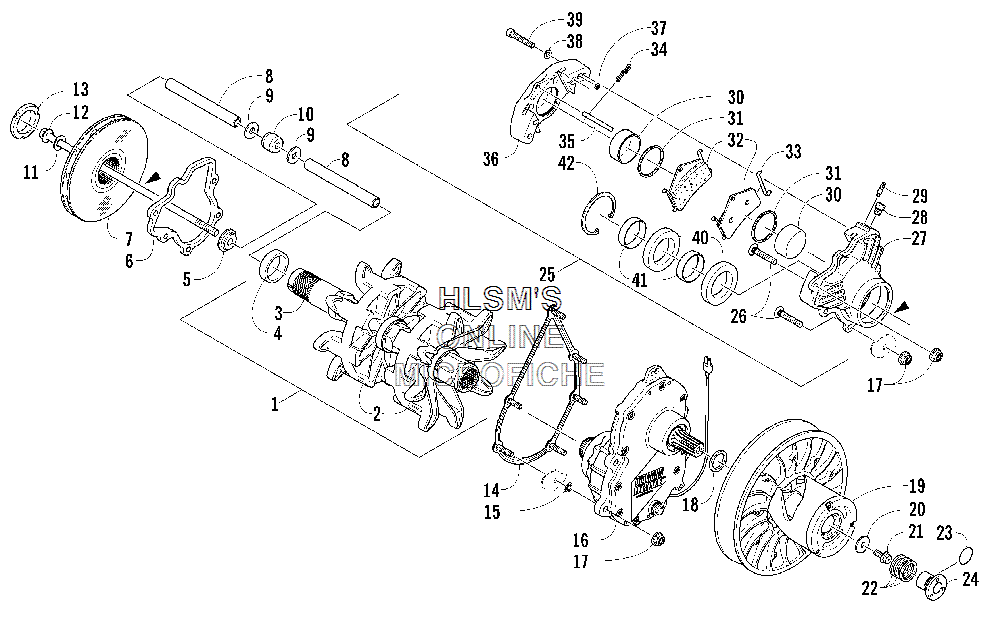

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat M7 EFI 162'' CT (BLACK) - 2006 года выпуска`
-
№АртикулНазвание
-
10728-163 TRACK DRIVE ASSY. (INC. 2, 4)TRACK DRIVE ASSY. (INC. 2, 4)
-
21602-592 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-760 DRIVESHAFTDRIVESHAFT
-
41602-315 COLLARCOLLAR
-
51602-791 INSERT, DRIVESHAFTINSERT, DRIVESHAFT
-
61602-497 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
71602-656 DISC, BRAKEDISC, BRAKE
-
81602-946 TUBE, DAMPERTUBE, DAMPER
-
91602-947 WASHER, DAMPERWASHER, DAMPER
-
101602-943 ISOLATOR, DRIVESHAFT CAP SCREWISOLATOR, DRIVESHAFT CAP SCREW
-
111623-445 WASHER, COPPERWASHER, COPPER
-
121623-456 SCREW, CAPSCREW, CAP
-
131602-355 NUT, RETAININGNUT, RETAINING
-
140702-648 PLATE, MOUNTING, GEARCASEPLATE, MOUNTING, GEARCASE
-
151623-355 NUT, PUSHNUT, PUSH
-
160702-790 GEARCASE ASSY.GEARCASE ASSY.
-
178047-426 NUT, LOCKNUT, LOCK
-
180648-442 WASHERWASHER
-
180648-443 WASHERWASHER
-
190726-224 CLUTCH, DRIVENCLUTCH, DRIVEN
-
201623-072 WASHERWASHER
-
211623-275 SCREW, CAPSCREW, CAP
-
220648-714 WASHER, DRIVEN .090 THICKWASHER, DRIVEN .090 THICK
-
220648-715 WASHER, DRIVEN .030 THICKWASHER, DRIVEN .030 THICK
-
220648-716 WASHER, DRIVEN .060 THICKWASHER, DRIVEN .060 THICK
-
230648-441 O-RINGO-RING
-
240648-741 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
250702-652 CALIPER, BRAKE, ASSY. (INC. 26, 42)CALIPER, BRAKE, ASSY. (INC. 26, 42)
-
261623-360 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
280602-590 FITTING, ADAPTERFITTING, ADAPTER
-
291602-458 FITTING, BLEEDFITTING, BLEED
-
301602-461 PISTONPISTON
-
311602-669 O-RINGO-RING
-
320702-563 PAD, BRAKE, SET (INC. 33, 34)PAD, BRAKE, SET (INC. 33, 34)
-
331602-466 CLIP, ANTI, RATTLECLIP, ANTI, RATTLE
-
341602-467 CLIP, HAIRPINCLIP, HAIRPIN
-
351602-464 PIN, RETAINING, BRAKE PADPIN, RETAINING, BRAKE PAD
-
370602-729 O-RING, HOUSINGO-RING, HOUSING
-
380402-165 WASHERWASHER
-
391602-671 SCREW, CAPSCREW, CAP
-
401602-462 BEARINGBEARING
-
411602-463 SLEEVE, DRIVESHAFTSLEEVE, DRIVESHAFT
-
421602-456 RING, RETAININGRING, RETAINING
