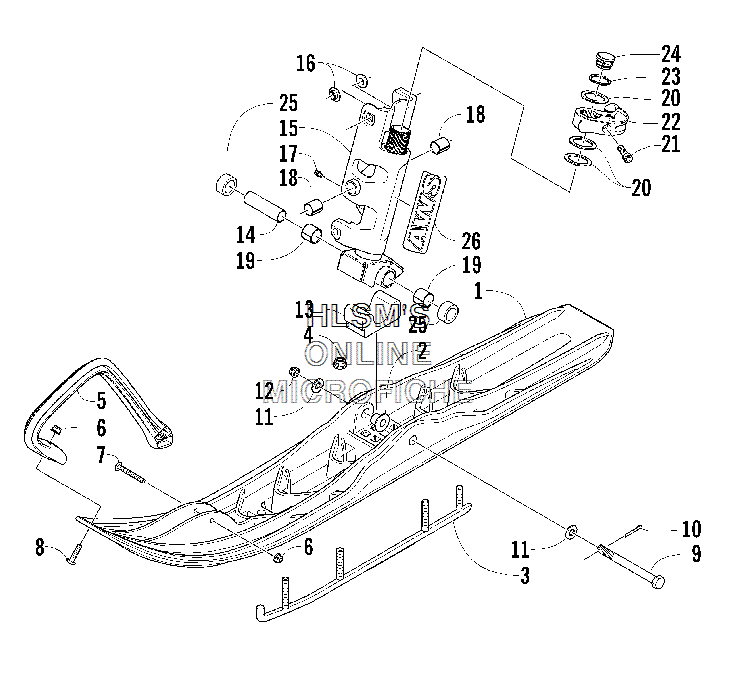

SKI AND SPINDLE ASSY. для Arctic Cat M7 EFI 153'' (WEST YELLOWSTONE GREEN) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2603-458 SKI, PLASTIC (BLACK)
    SKI, PLASTIC (BLACK)
  • 2
    2603-397 INSERT, SKI
    INSERT, SKI
  • 3
    0703-871 WEARBAR
    WEARBAR
  • 4
    8047-486 NUT, LOCK
    NUT, LOCK
  • 5
    2603-394 HANDLE, PLASTIC
    HANDLE, PLASTIC
  • 6
    8047-366 NUT, LOCK
    NUT, LOCK
  • 7
    8017-587 SCREW,MACH-TXSTRH (1/4-20 X 2.0)
    SCREW,MACH-TXSTRH (1/4-20 X 2.0)
  • 8
    8017-584 SCREW,MACH-TXSTRH (1/4-20 X 1 1)
    SCREW,MACH-TXSTRH (1/4-20 X 1 1)
  • 9
    0623-776 SCREW, CAP
    SCREW, CAP
  • 10
    0123-458 PIN, COTTER
    PIN, COTTER
  • 11
    0623-728 WASHER
    WASHER
  • 12
    0123-296 NUT, LOCK
    NUT, LOCK
  • 13
    2603-553 DAMPER, SKI
    DAMPER, SKI
  • 14
    2603-548 AXLE, SPINDLE
    AXLE, SPINDLE
  • 15
    1703-886 SPINDLE, STEERING (RIGHT) (INC. 16, 23)
    SPINDLE, STEERING (RIGHT) (INC. 16, 23)
  • 15
    1703-887 SPINDLE, STEERING (LEFT) (INC. 16, 23)
    SPINDLE, STEERING (LEFT) (INC. 16, 23)
  • 16
    0603-647 INSERT, SPINDLE
    INSERT, SPINDLE
  • 17
    1623-010 FITTING, GREASE
    FITTING, GREASE
  • 18
    0603-083 BEARING
    BEARING
  • 19
    0603-158 BEARING
    BEARING
  • 20
    1603-203 WASHER, THRUST
    WASHER, THRUST
  • 21
    8005-584 SCREW, CAP
    SCREW, CAP
  • 22
    1703-413 ARM, STEERING
    ARM, STEERING
  • 23
    0623-796 RING, RETAINING
    RING, RETAINING
  • 24
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 25
    1603-908 SPACER
    SPACER
  • 26
    7611-065 DECAL, "AWS", SPINDLE
    DECAL, "AWS", SPINDLE
