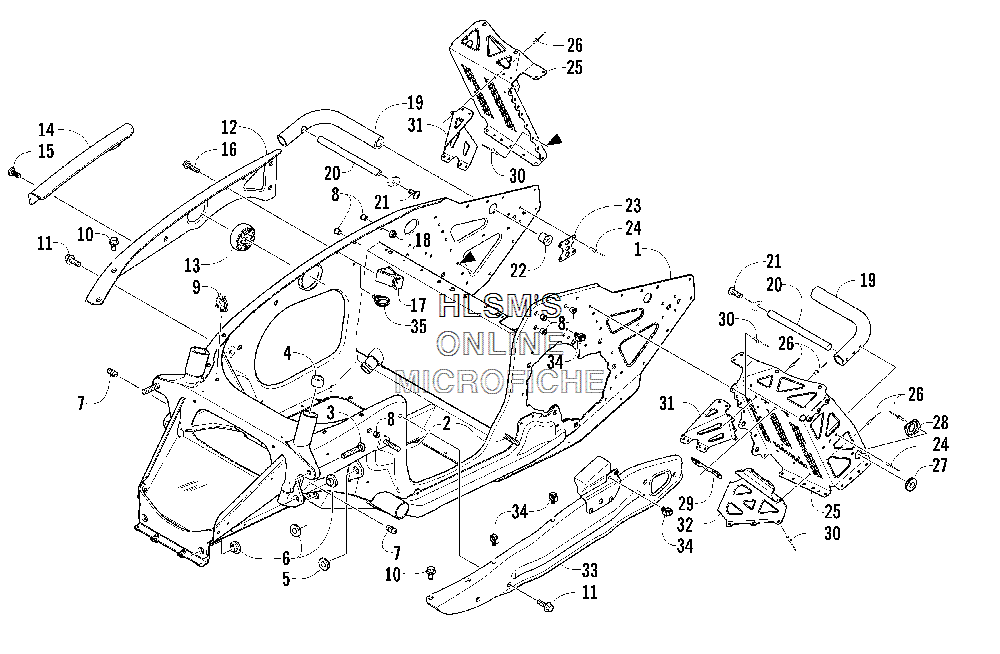

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat M7 EFI 153'' (WEST YELLOWSTONE BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-988 CHASSIS, ASSY. (INC. 2, 8)
    CHASSIS, ASSY. (INC. 2, 8)
  • 2
    1623-359 BOLT, CARRIAGE, RIBBED (5/16-18X1.75)
    BOLT, CARRIAGE, RIBBED (5/16-18X1.75)
  • 3
    1623-019 BOLT, CARRIAGE, RIBBED (3/8-16X2.00)
    BOLT, CARRIAGE, RIBBED (3/8-16X2.00)
  • 4
    0675-161 BEARING
    BEARING
  • 5
    0607-656 BUSHING A, ARM MOUNT (UPPER)
    BUSHING A, ARM MOUNT (UPPER)
  • 6
    0607-657 BUSHING A, ARM MOUNT (LOWER)
    BUSHING A, ARM MOUNT (LOWER)
  • 7
    1623-010 FITTING, GREASE
    FITTING, GREASE
  • 8
    0623-581 INSERT
    INSERT
  • 9
    1623-171 CLIP
    CLIP
  • 10
    8020-040 SCREW, CAP-HFH 1/4-20 X 0.750 Z
    SCREW, CAP-HFH 1/4-20 X 0.750 Z
  • 11
    8020-131 SCREW, CAP-HFH 5/16-18 X0.875 G
    SCREW, CAP-HFH 5/16-18 X0.875 G
  • 12
    3606-416 BRACE, SIDE PLATE (RIGHT)
    BRACE, SIDE PLATE (RIGHT)
  • 13
    0608-404 MOUNT, ENGINE
    MOUNT, ENGINE
  • 14
    3606-761 PROTECTOR, MAIN HARNESS
    PROTECTOR, MAIN HARNESS
  • 15
    1623-353 SCREW, SELF TAP-TSPNH 10-24 X 3
    SCREW, SELF TAP-TSPNH 10-24 X 3
  • 16
    1623-204 SCREW, PLASTITE-HWH 1/4-10X1.0
    SCREW, PLASTITE-HWH 1/4-10X1.0
  • 17
    0608-449 GUIDE, ROPE
    GUIDE, ROPE
  • 18
    8041-426 NUT, LOCK
    NUT, LOCK
  • 19
    2706-685 TUBE, SUPPORT, FOOTREST
    TUBE, SUPPORT, FOOTREST
  • 20
    3606-775 GUARD, SUPPORT TUBE
    GUARD, SUPPORT TUBE
  • 21
    8017-577 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1623-371 SCREW, TUBE
    SCREW, TUBE
  • 23
    2706-580 PLATE, BACKING
    PLATE, BACKING
  • 24
    8060-686 RIVET
    RIVET
  • 25
    2706-816 FOOTREST (RIGHT) (INC. 26, 28)
    FOOTREST (RIGHT) (INC. 26, 28)
  • 25
    2706-817 FOOTREST (LEFT) (INC. 26, 29)
    FOOTREST (LEFT) (INC. 26, 29)
  • 26
    8060-484 RIVET
    RIVET
  • 27
    1623-417 GROMMET
    GROMMET
  • 28
    3606-837 PLATE, RETAINING
    PLATE, RETAINING
  • 29
    0607-835 PLATE, MOUNTING, BELT GUARD
    PLATE, MOUNTING, BELT GUARD
  • 30
    1623-264 RIVET
    RIVET
  • 31
    3606-904 BRACKET, SUPPORT, FOOTREST (RIGHT)
    BRACKET, SUPPORT, FOOTREST (RIGHT)
  • 31
    3606-905 BRACKET, SUPPORT, FOOTREST (LEFT)
    BRACKET, SUPPORT, FOOTREST (LEFT)
  • 32
    3606-907 BRACKET, SUPPORT, FOOTREST (LOWER) LEFT
    BRACKET, SUPPORT, FOOTREST (LOWER) LEFT
  • 33
    3706-111 BRACE, SIDE PLATE (LEFT)
    BRACE, SIDE PLATE (LEFT)
  • 34
    1623-406 CLIP, ROUTING
    CLIP, ROUTING
  • 35
    0623-454 CLIP, ROUTING
    CLIP, ROUTING
  • 35
    1707-057 COMPLETE CHASSIS ASSY.
    COMPLETE CHASSIS ASSY.
