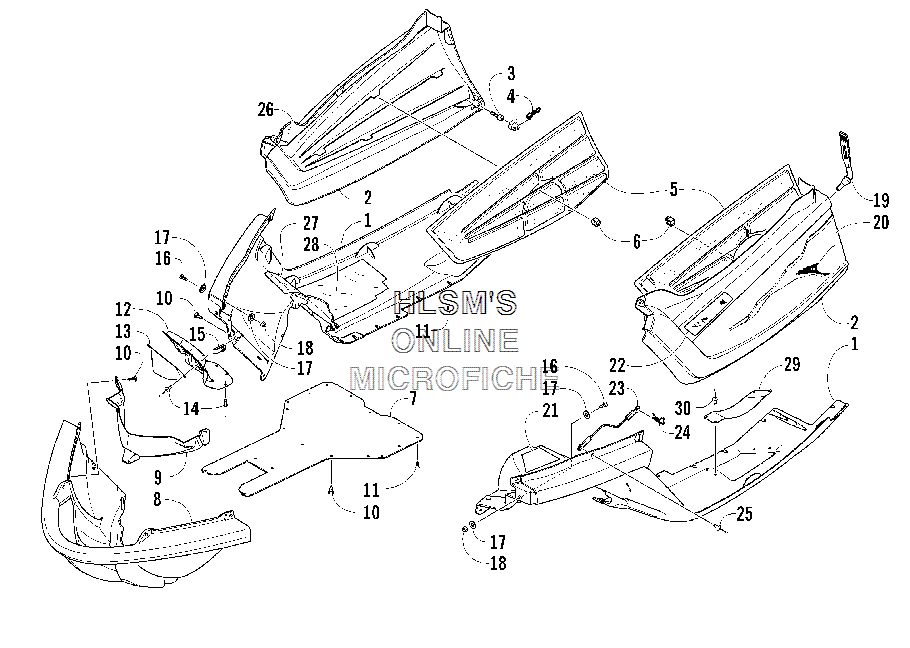

BELLY PAN ASSEMBLY для Arctic Cat M7 EFI 153'' CT (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13706-208 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
13706-209 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
24606-258 PANEL, ACCESS (RIGHT)PANEL, ACCESS (RIGHT)
-
24606-259 PANEL, ACCESS (LEFT)PANEL, ACCESS (LEFT)
-
31623-531 SCREW, RETAINING, ACCESS PANELSCREW, RETAINING, ACCESS PANEL
-
41623-546 CLIP, RETAINING, ACCESS PANELCLIP, RETAINING, ACCESS PANEL
-
50617-502 FOAM, SIDE PANEL (RIGHT)FOAM, SIDE PANEL (RIGHT)
-
50617-503 FOAM, SIDE PANEL (LEFT)FOAM, SIDE PANEL (LEFT)
-
60123-394 CLIP, RETAININGCLIP, RETAINING
-
73606-867 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
84606-041 BUMPER (FRONT)BUMPER (FRONT)
-
92606-911 SCREEN, BELLY PAN (CENTER)SCREEN, BELLY PAN (CENTER)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
121612-853 SHIELD, HEATSHIELD, HEAT
-
131612-861 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
140623-778 RIVETRIVET
-
151623-030 NUT, SPEEDNUT, SPEED
-
168017-581 SCREW, MACHINESCREW, MACHINE
-
178050-217 WASHERWASHER
-
188047-366 NUT, LOCKNUT, LOCK
-
192606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
207611-100 DECAL, ACCESS PANEL (RIGHT)DECAL, ACCESS PANEL (RIGHT)
-
207611-101 DECAL, ACCESS PANEL (LEFT)DECAL, ACCESS PANEL (LEFT)
-
217611-204 DECAL, CLUTCHINGDECAL, CLUTCHING
-
227611-160 DECAL, REFLECTOR (AMBER) (RIGHT)DECAL, REFLECTOR (AMBER) (RIGHT)
-
227611-161 DECAL, REFLECTOR (AMBER) (LEFT)DECAL, REFLECTOR (AMBER) (LEFT)
-
230607-447 CABLECABLE
-
240605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
258061-426 RIVETRIVET
-
264606-157 FOIL, PROTECTIVE, ACCESS PANELFOIL, PROTECTIVE, ACCESS PANEL
-
274606-207 FOIL, PROTECTIVE BELLY PAN (UPPER)FOIL, PROTECTIVE BELLY PAN (UPPER)
-
284606-208 FOIL, PROTECTIVE BELLY PAN (LOWER)FOIL, PROTECTIVE BELLY PAN (LOWER)
-
294606-381 PROTECTOR, BELLY PANPROTECTOR, BELLY PAN
-
308061-506 RIVETRIVET
