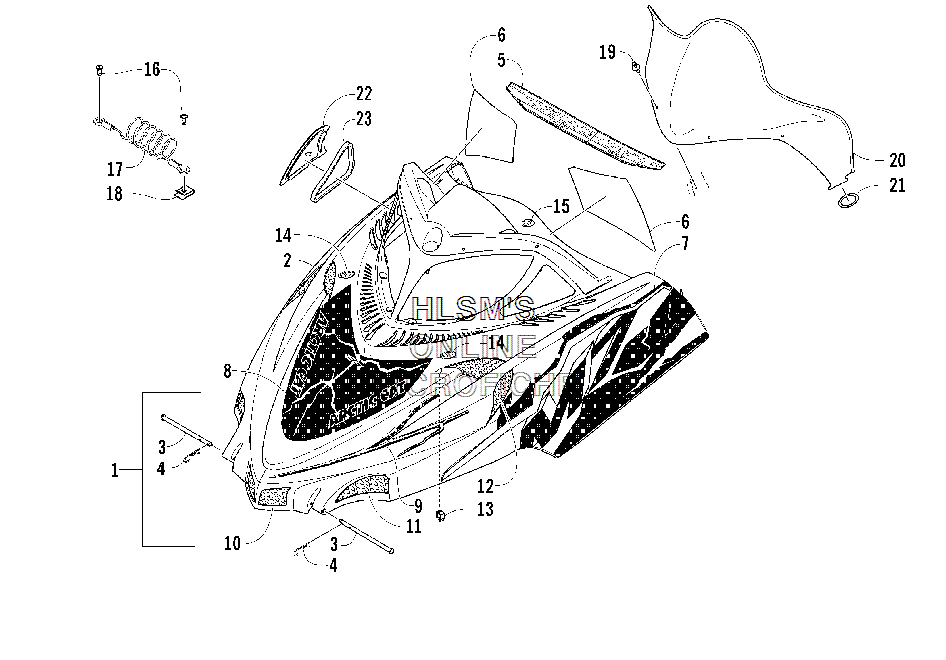

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat M7 EFI 141'' (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11718-923 HOOD W/DECALS (INC. 2, 9)HOOD W/DECALS (INC. 2, 9)
-
21718-918 HOOD W/O DECALS (INC. 3, 6)HOOD W/O DECALS (INC. 3, 6)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
56611-143 DECAL, CAUTIONDECAL, CAUTION
-
66611-144 DECAL, WARNING, ENGLISHDECAL, WARNING, ENGLISH
-
66611-145 DECAL, WARNING, FRENCHDECAL, WARNING, FRENCH
-
77611-096 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
77611-097 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
87611-094 DECAL, HOOD, FORWARD RIGHTDECAL, HOOD, FORWARD RIGHT
-
87611-095 DECAL, HOOD, FORWARD LEFTDECAL, HOOD, FORWARD LEFT
-
97611-098 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
102706-793 SCREEN, VENT (CENTER)SCREEN, VENT (CENTER)
-
113706-260 SCREEN, VENT (FRONT) (RIGHT)SCREEN, VENT (FRONT) (RIGHT)
-
113706-261 SCREEN, VENT (FRONT) (LEFT)SCREEN, VENT (FRONT) (LEFT)
-
122706-796 SCREEN, VENT (REAR) (RIGHT)SCREEN, VENT (REAR) (RIGHT)
-
122706-797 SCREEN, VENT (REAR) (LEFT)SCREEN, VENT (REAR) (LEFT)
-
130123-394 CLIP, RETAININGCLIP, RETAINING
-
140617-490 FOAM, HOOD (RIGHT)FOAM, HOOD (RIGHT)
-
140617-511 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
150617-489 FOAM, HOOD (REAR)FOAM, HOOD (REAR)
-
163606-868 WINDSHIELDWINDSHIELD
-
170616-032 O-RINGO-RING
-
180623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
190617-486 FOAM, INTAKE BEZEL (RIGHT)FOAM, INTAKE BEZEL (RIGHT)
-
190617-487 FOAM, INTAKE BEZEL (LEFT)FOAM, INTAKE BEZEL (LEFT)
-
203606-428 BEZEL, INTAKE (RIGHT)BEZEL, INTAKE (RIGHT)
-
203606-429 BEZEL, INTAKE (LEFT)BEZEL, INTAKE (LEFT)
-
210623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
222606-726 CABLE, HOODCABLE, HOOD
-
231623-052 U, NUTU, NUT
