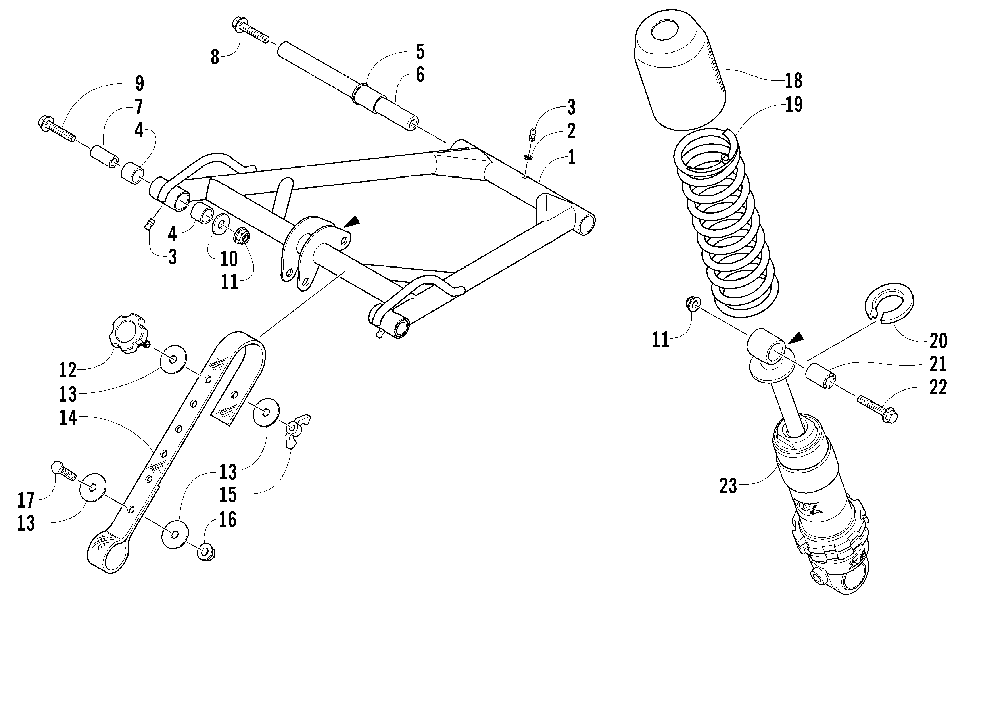

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat M7 EFI 141'' (BLACK) - 2006 года выпуска`
-
№АртикулНазвание
-
11704-424 ARM SUSPENSION (FRONT) (INC. 2, 5)ARM SUSPENSION (FRONT) (INC. 2, 5)
-
21623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
31623-010 FITTING, GREASE, SELF, TAPPINGFITTING, GREASE, SELF, TAPPING
-
40604-889 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
52604-128 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
62604-591 AXLE, ALUMINUMAXLE, ALUMINUM
-
71604-162 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
88020-223 SCREW, CAPSCREW, CAP
-
98020-229 SCREW, CAPSCREW, CAP
-
100114-197 WASHERWASHER
-
118047-486 NUT, LOCKNUT, LOCK
-
121623-044 KNOB, ADJUSTERKNOB, ADJUSTER
-
130623-184 WASHERWASHER
-
142604-657 STRAP, LIMITERSTRAP, LIMITER
-
150623-325 NUT, WINGNUT, WING
-
168047-366 NUT, LOCKNUT, LOCK
-
178002-043 SCREW, CAPSCREW, CAP
-
180604-590 COVER, SHOCKCOVER, SHOCK
-
190704-523 SPRING, COMPRESSIONSPRING, COMPRESSION
-
201603-890 RETAINER, SPRINGRETAINER, SPRING
-
211603-531 AXLE, SERRATEDAXLE, SERRATED
-
228020-226 SCREW, CAPSCREW, CAP
-
231704-318 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
