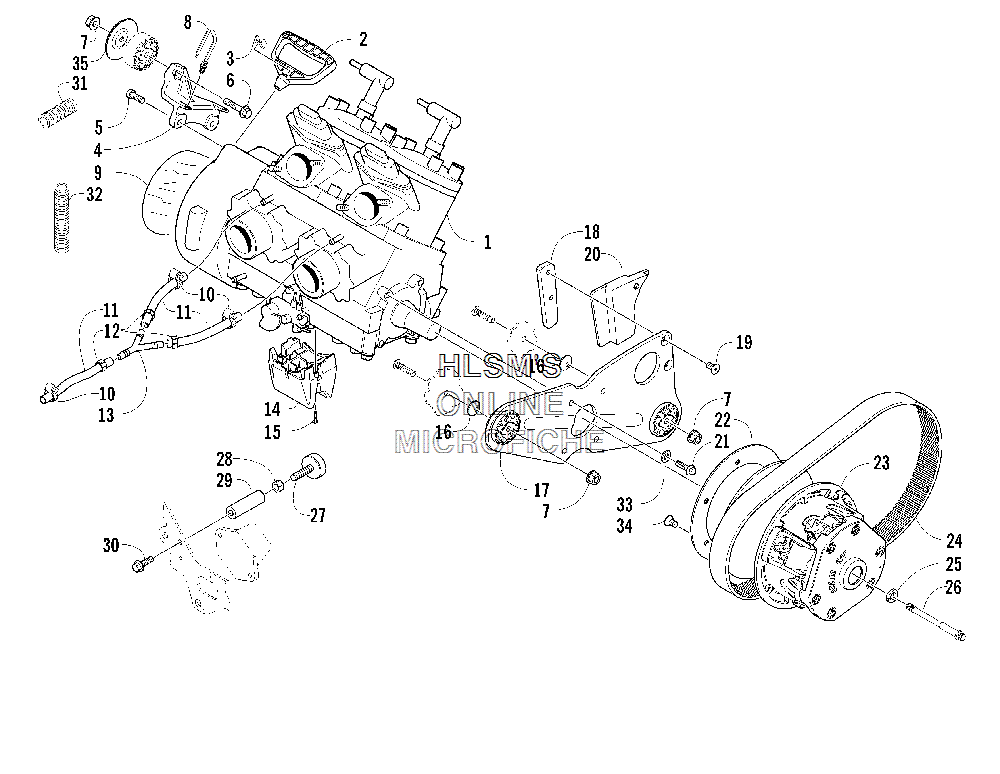

ENGINE AND RELATED PARTS для Arctic Cat M7 Carb 153'' Attack 20 (GREEN) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-444 ENGINE, AE70L4 W/90° FITTING
    ENGINE, AE70L4 W/90° FITTING
  • 2
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 3
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 4
    0708-461 BRACKET, ENGINE MOUNTING (RIGHT)
    BRACKET, ENGINE MOUNTING (RIGHT)
  • 5
    8413-830 SCREW, CAP
    SCREW, CAP
  • 6
    8020-136 SCREW, CAP
    SCREW, CAP
  • 7
    8047-426 NUT, LOCK
    NUT, LOCK
  • 8
    0623-677 CABLE TIE, PUSH, MOUNT
    CABLE TIE, PUSH, MOUNT
  • 9
    1670-328 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 10
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-076 HOSE, COOLANT (10 FT)
    HOSE, COOLANT (10 FT)
  • 12
    0610-581 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    1670-596 Y, FITTING
    Y, FITTING
  • 14
    0608-460 BUMPER
    BUMPER
  • 15
    1623-022 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0623-987 WASHER
    WASHER
  • 17
    0708-469 BRACKET, ENGINE MOUNTING (LEFT) (INC. 18, 19)
    BRACKET, ENGINE MOUNTING (LEFT) (INC. 18, 19)
  • 18
    0608-430 SPACER, TORQUE BUMPER
    SPACER, TORQUE BUMPER
  • 19
    1623-459 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 20
    0608-433 BUMPER, TORQUE
    BUMPER, TORQUE
  • 21
    8413-825 SCREW, CAP
    SCREW, CAP
  • 22
    0645-410 DAMPER, CLUTCH
    DAMPER, CLUTCH
  • 23
    0725-536 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 24
    0627-036 BELT, DRIVE
    BELT, DRIVE
  • 25
    0623-210 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 26
    0623-804 BOLT, CLUTCH
    BOLT, CLUTCH
  • 27
    0608-396 BUMPER, TORQUE
    BUMPER, TORQUE
  • 28
    8042-486 NUT
    NUT
  • 29
    0608-394 TUBE, TORQUE BUMPER
    TUBE, TORQUE BUMPER
  • 30
    8020-220 SCREW, CAP
    SCREW, CAP
  • 31
    0619-619 CONDUIT, FLEXIBLE, 4 IN.
    CONDUIT, FLEXIBLE, 4 IN.
  • 32
    0619-994 CONDUIT, FLEXIBLE (3/4 IN. ID 6 IN.)
    CONDUIT, FLEXIBLE (3/4 IN. ID 6 IN.)
  • 33
    8050-252 WASHER
    WASHER
  • 34
    1623-128 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 35
    4606-317 SHIELD, HEAT, ENGINE MOUNT
    SHIELD, HEAT, ENGINE MOUNT
