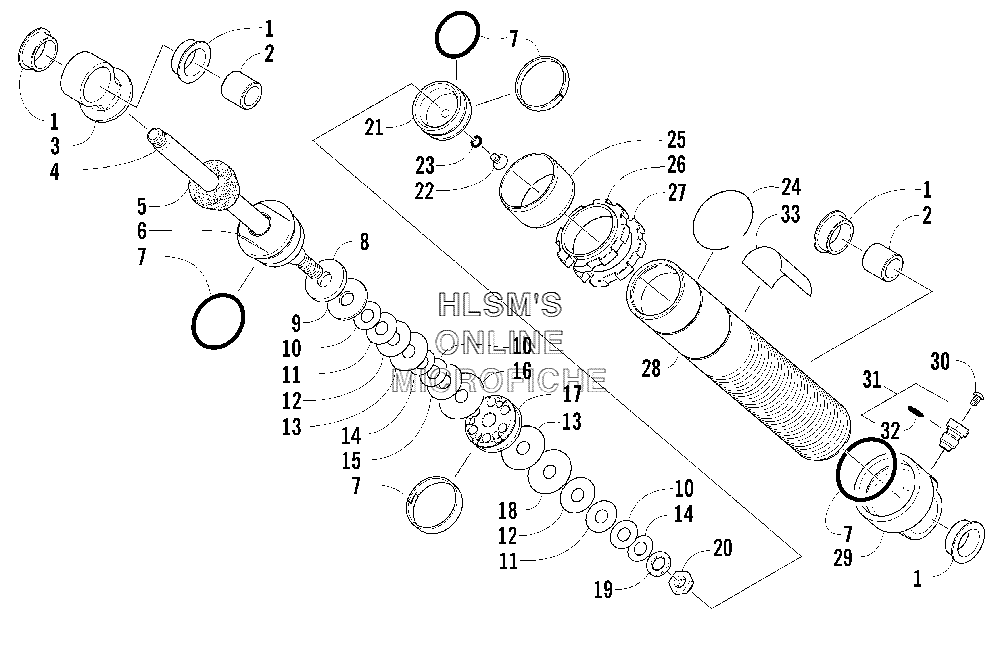

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat M6 EFI 141'' (GREEN) - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    1703-783 SHOCK ABORBER
    SHOCK ABORBER
  • 1
    0603-955 BUSHING, SHOCK
    BUSHING, SHOCK
  • 2
    1603-209 SLEEVE, EYELET
    SLEEVE, EYELET
  • 3
    0603-910 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    2603-416 ROD, SHOCK
    ROD, SHOCK
  • 5
    2603-459 BUMPER, SHOCK
    BUMPER, SHOCK
  • 6
    2604-812 CAP, SHOCK
    CAP, SHOCK
  • 7
    2604-815 SEAL/REBUILD KIT
    SEAL/REBUILD KIT
  • 8
    2603-474 SPACER
    SPACER
  • 9
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 10
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 11
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 12
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 13
    0603-346 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 14
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 15
    0603-342 VALVE, 1.100 X 0.006 IN.
    VALVE, 1.100 X 0.006 IN.
  • 16
    0603-348 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 17
    2603-309 PISTON, 0.120 IN., ORIFICE
    PISTON, 0.120 IN., ORIFICE
  • 18
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 19
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 20
    0603-301 NUT, LOCK
    NUT, LOCK
  • 21
    2604-816 PISTON, FLOATING
    PISTON, FLOATING
  • 22
    1604-316 SCREW, RELIEF (INC. 23)
    SCREW, RELIEF (INC. 23)
  • 23
    1604-425 O-RING
    O-RING
  • 24
    2603-245 RETAINER, SLEEVE
    RETAINER, SLEEVE
  • 25
    2603-246 SLEEVE, PROTECTOR
    SLEEVE, PROTECTOR
  • 26
    2604-840 NUT, ADJUSTER
    NUT, ADJUSTER
  • 27
    2604-841 NUT, LOCKING, ADJUSTER
    NUT, LOCKING, ADJUSTER
  • 28
    2603-460 BODY, SHOCK
    BODY, SHOCK
  • 29
    2604-817 END CAP, SHOCK
    END CAP, SHOCK
  • 30
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 31
    0703-341 VALVE, PRESSURE (INC. 32)
    VALVE, PRESSURE (INC. 32)
  • 32
    1604-318 O-RING, VALVE
    O-RING, VALVE
  • 33
    2604-897 DECAL, SHOCK
    DECAL, SHOCK
  • 33
    2639-149 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
