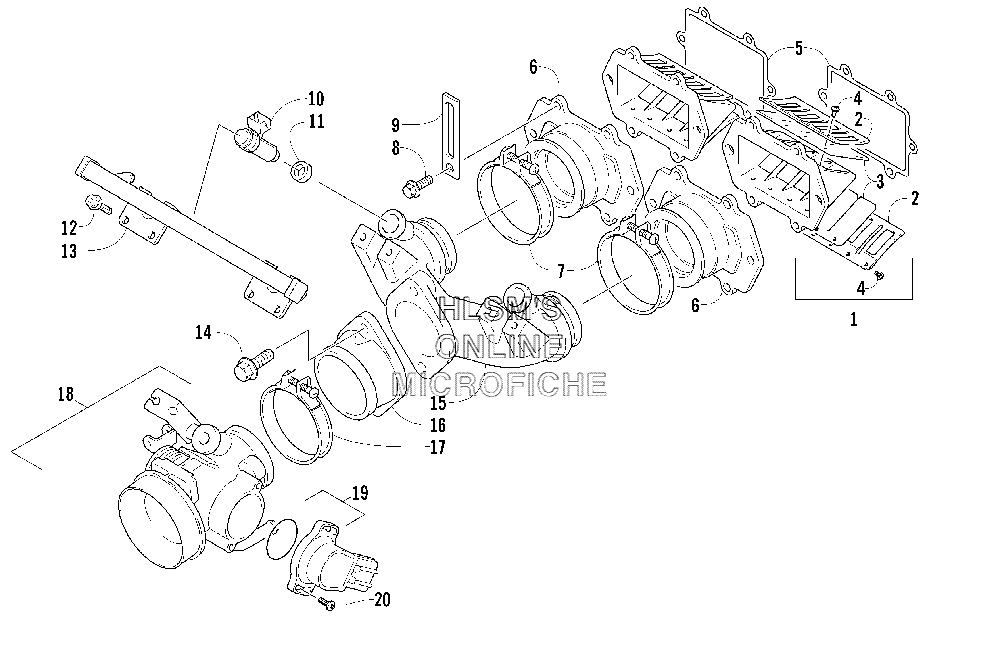

REED VALVE/THROTTLE BODY ASSEMBLY для Arctic Cat M5 EFI (BLACK) - 2006 года выпуска`
-
№АртикулНазвание
-
13007-046 VALVE, REED, ASSY (INC. 2, 4)VALVE, REED, ASSY (INC. 2, 4)
-
23007-047 STOPPERSTOPPER
-
33007-048 VALVE, REEDVALVE, REED
-
43004-506 SCREWSCREW
-
53005-879 GASKET, REED VALVEGASKET, REED VALVE
-
63006-713 PIPE, INTAKEPIPE, INTAKE
-
73004-463 CLAMPCLAMP
-
83004-341 BOLTBOLT
-
93002-964 CLAMP, WIRECLAMP, WIRE
-
103007-051 INJECTOR, FUEL, ASSY (CIRCLE)INJECTOR, FUEL, ASSY (CIRCLE)
-
103007-052 INJECTOR, FUEL, ASSY (SQUARE)INJECTOR, FUEL, ASSY (SQUARE)
-
103007-053 INJECTOR, FUEL, ASSY (TRIANGLE)INJECTOR, FUEL, ASSY (TRIANGLE)
-
113006-126 CUSHION, INJECTORCUSHION, INJECTOR
-
123423-418 BOLTBOLT
-
133007-054 PIPE, DELIVERYPIPE, DELIVERY
-
143007-055 BOLTBOLT
-
153007-050 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
163007-049 FLANGE, INTAKE MANIFOLDFLANGE, INTAKE MANIFOLD
-
173004-463 CLAMPCLAMP
-
183007-056 BODY, THROTTLE, ASSY (INC. 19, 20)BODY, THROTTLE, ASSY (INC. 19, 20)
-
193006-940 SENSOR, THROTTLE, ASSYSENSOR, THROTTLE, ASSY
-
203007-026 SCREWSCREW
