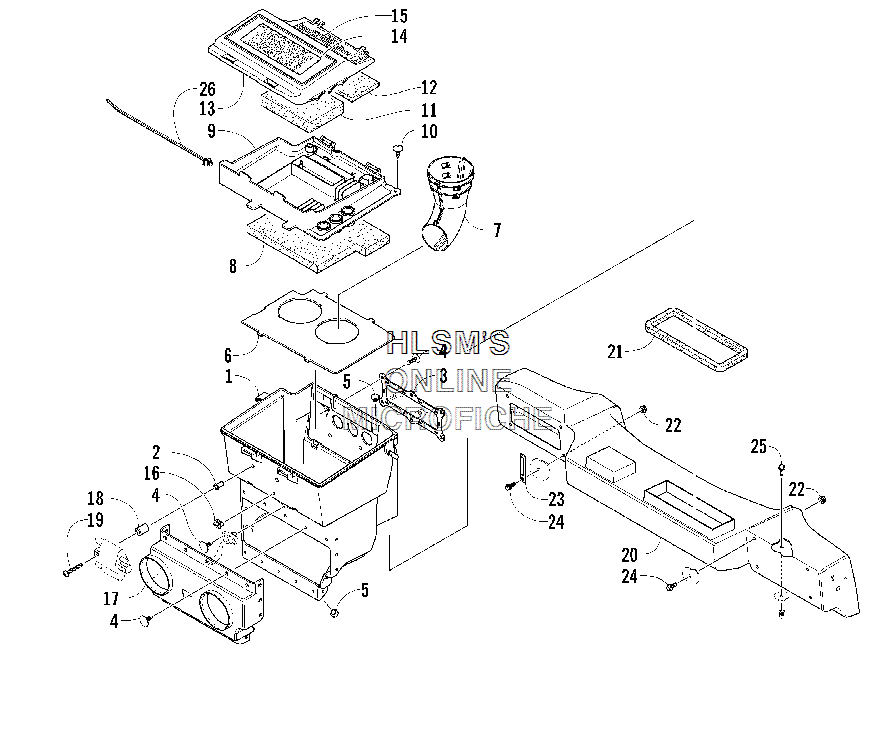

AIR SILENCER ASSY. для Arctic Cat King Cat 900 EFI (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-671 SILENCER, AIR, ASSY. (INC. 2, 3 AND SIX NO. 4)
    SILENCER, AIR, ASSY. (INC. 2, 3 AND SIX NO. 4)
  • 2
    1623-127 INSERT
    INSERT
  • 3
    1670-517 SCREEN, AIR SILENCER
    SCREEN, AIR SILENCER
  • 4
    0623-165 CLIP, X-MAS TREE-5/32
    CLIP, X-MAS TREE-5/32
  • 5
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 6
    1670-461 BAFFLE, AIR SILENCER
    BAFFLE, AIR SILENCER
  • 7
    0670-617 FUNNEL, AIR SILENCER
    FUNNEL, AIR SILENCER
  • 8
    0617-430 FOAM, AIR SILENCER, COVER
    FOAM, AIR SILENCER, COVER
  • 9
    0770-700 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 10
    0623-727 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 11
    0617-439 FOAM, TOOL TRAY-5.5 X 4.0 X 1.7
    FOAM, TOOL TRAY-5.5 X 4.0 X 1.7
  • 12
    0617-440 FOAM, TOOL TRAY-5.5 X 3.0 X .5
    FOAM, TOOL TRAY-5.5 X 3.0 X .5
  • 13
    1670-425 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 14
    7611-210 DECAL, CLUTCHING
    DECAL, CLUTCHING
  • 15
    6611-009 DECAL, EFI DIAGNOSTIC CODES
    DECAL, EFI DIAGNOSTIC CODES
  • 16
    0623-403 CLAMP, PUSH, MOUNT
    CLAMP, PUSH, MOUNT
  • 17
    1670-256 BOOT, AIR SILENCER
    BOOT, AIR SILENCER
  • 18
    1623-045 SPACER
    SPACER
  • 19
    8017-406 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1670-480 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 21
    0617-436 SEAL, AIR SILENCER PLENUM
    SEAL, AIR SILENCER PLENUM
  • 22
    8047-366 NUT, LOCK
    NUT, LOCK
  • 23
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 24
    8020-040 SCREW, CAP
    SCREW, CAP
  • 25
    8020-039 SCREW, CAP
    SCREW, CAP
  • 26
    0623-677 CABLE TIE, PUSH, MOUNT
    CABLE TIE, PUSH, MOUNT
