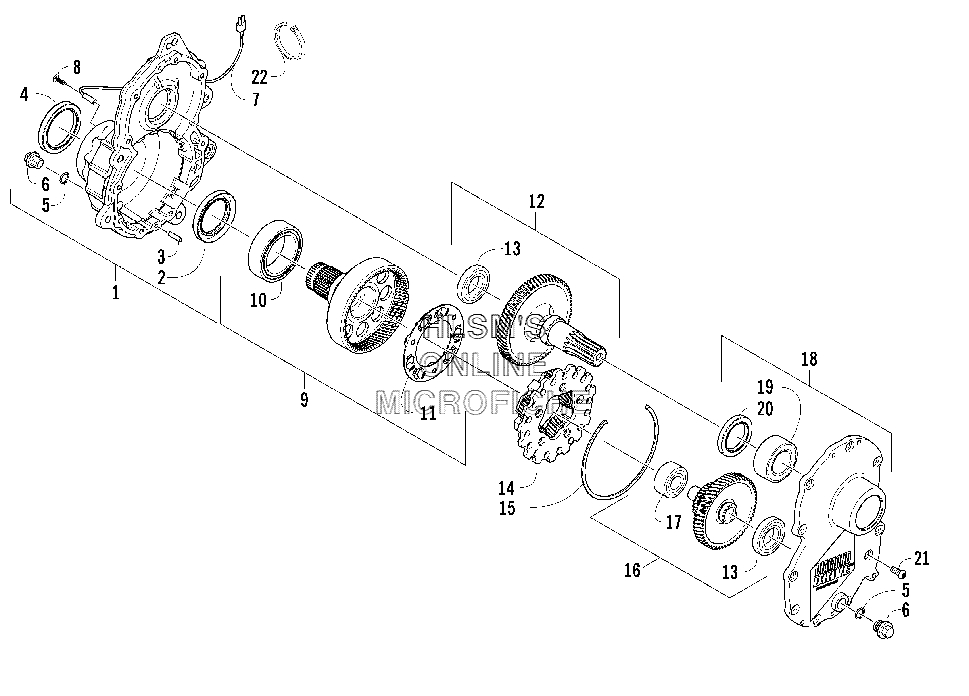

GEARCASE ASSEMBLY для Arctic Cat F7 Firecat Sno Pro (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0702-789 GEARCASE (INC. 2, 6)
    GEARCASE (INC. 2, 6)
  • 2
    1602-344 SEAL, OIL
    SEAL, OIL
  • 3
    1602-345 PIN, DOWEL
    PIN, DOWEL
  • 4
    1602-766 SEAL, OIL
    SEAL, OIL
  • 5
    1602-213 O-RING
    O-RING
  • 6
    0623-293 PLUG, GEARCASE
    PLUG, GEARCASE
  • 7
    0630-212 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 8
    1623-343 CLIP, RETAINING
    CLIP, RETAINING
  • 9
    0702-675 GEAR, RING (76 TEETH) (INC. 10, 11)
    GEAR, RING (76 TEETH) (INC. 10, 11)
  • 10
    1602-318 BEARING
    BEARING
  • 11
    1602-745 RETAINER, MAGNET
    RETAINER, MAGNET
  • 12
    0702-691 SHAFT, INPUT (60 TEETH) (INC. ONE NO. 13)
    SHAFT, INPUT (60 TEETH) (INC. ONE NO. 13)
  • 13
    1602-340 BEARING
    BEARING
  • 14
    1602-349 GEAR, PLANETARY, 5 PINION
    GEAR, PLANETARY, 5 PINION
  • 15
    1602-731 RING, RETAINING, PLANETARY GEAR
    RING, RETAINING, PLANETARY GEAR
  • 16
    0702-709 GEAR, TRANSFER (60/34 TEETH) (INC. ONE NO. 13 AND 17)
    GEAR, TRANSFER (60/34 TEETH) (INC. ONE NO. 13 AND 17)
  • 17
    1602-348 BEARING
    BEARING
  • 18
    0702-803 COVER, GEARCASE (INC. 19, 20 AND ONE NO. 5 AND 6)
    COVER, GEARCASE (INC. 19, 20 AND ONE NO. 5 AND 6)
  • 19
    1602-341 BEARING
    BEARING
  • 20
    1602-875 SEAL, OIL
    SEAL, OIL
  • 21
    1623-075 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    0123-811 CABLE TIE
    CABLE TIE
  • -
    4639-025 FLUID, GEARCASE, CASE
    FLUID, GEARCASE, CASE
  • -
    0702-800 COMPLETE GEARCASE ASSY
    COMPLETE GEARCASE ASSY
