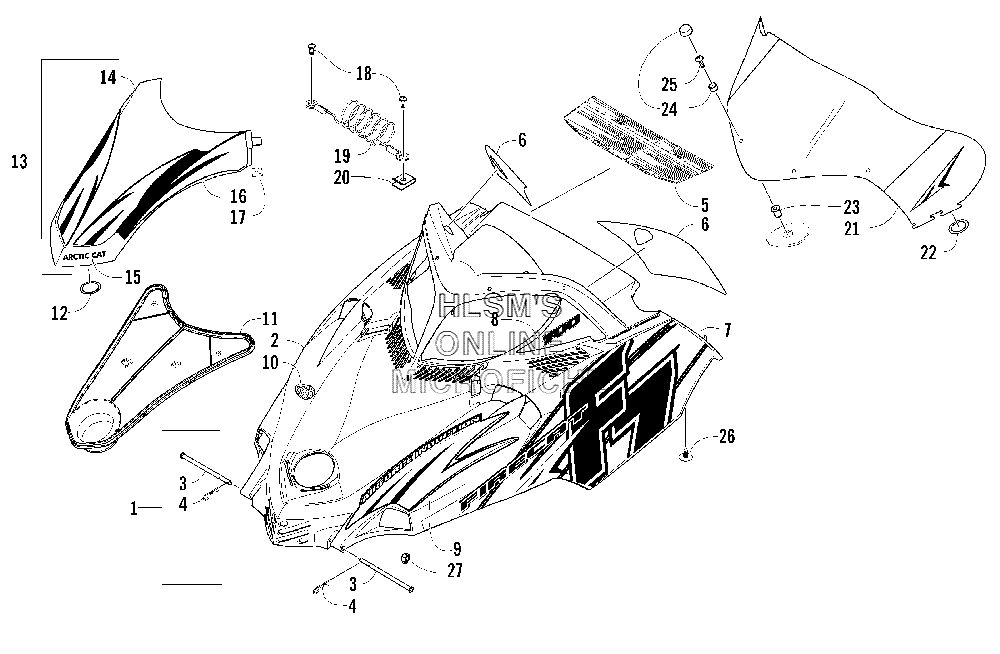

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat F7 Firecat Sno Pro (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11718-837 HOOD W/DECALS (INC. 2, 9)HOOD W/DECALS (INC. 2, 9)
-
21718-636 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
54611-496 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
66611-894 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
66611-895 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
76611-900 DECAL, HOOD (LOWER RIGHT)DECAL, HOOD (LOWER RIGHT)
-
76611-901 DECAL, HOOD (LOWER LEFT)DECAL, HOOD (LOWER LEFT)
-
86611-904 DECAL, HOOD (LIGHT/RIGHT)DECAL, HOOD (LIGHT/RIGHT)
-
86611-905 DECAL, HOOD (LIGHT/LEFT)DECAL, HOOD (LIGHT/LEFT)
-
96611-910 DECAL, HOOD (UPPER RIGHT)DECAL, HOOD (UPPER RIGHT)
-
96611-911 DECAL, HOOD (UPPER LEFT)DECAL, HOOD (UPPER LEFT)
-
100617-466 FOAM, HOODFOAM, HOOD
-
113606-150 SCREEN, HOODSCREEN, HOOD
-
122606-801 O-RINGO-RING
-
131718-844 COVER, HOOD W/DECALS (INC. 14, 17)COVER, HOOD W/DECALS (INC. 14, 17)
-
142706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
153611-679 DECAL, HOOD, "ARCTIC CAT"DECAL, HOOD, "ARCTIC CAT"
-
166611-892 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
166611-893 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
172606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
180623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
192606-726 CABLE, HOODCABLE, HOOD
-
201623-052 U, NUTU, NUT
-
214606-025 WINDSHIELDWINDSHIELD
-
220616-032 O-RINGO-RING
-
230623-845 NUT, EXPANSIONNUT, EXPANSION
-
240124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
250623-902 SCREW, MACHINESCREW, MACHINE
-
260623-544 PLUGPLUG
-
270123-394 CLIP, RETAININGCLIP, RETAINING
