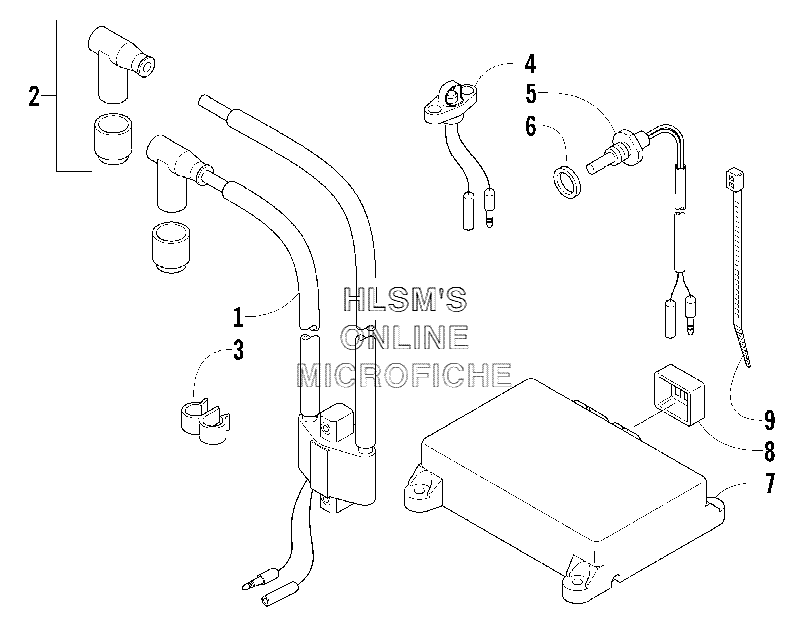

ELECTRICAL для Arctic Cat F7 Firecat EFI TONY STEWART EDITION - 2006 года выпуска
-
№АртикулНазвание
-
13006-692 COIL, IGNITION, ASSEMBLYCOIL, IGNITION, ASSEMBLY
-
23006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
33005-387 CLAMPCLAMP
-
43006-728 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53006-725 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
73007-010 ECU (CIRCLE)ECU (CIRCLE)
-
73007-011 ECU (SQUARE)ECU (SQUARE)
-
73007-012 ECU (TRIANGLE)ECU (TRIANGLE)
-
83005-908 CAP, RUBBERCAP, RUBBER
-
93005-237 CABLE TIECABLE TIE
