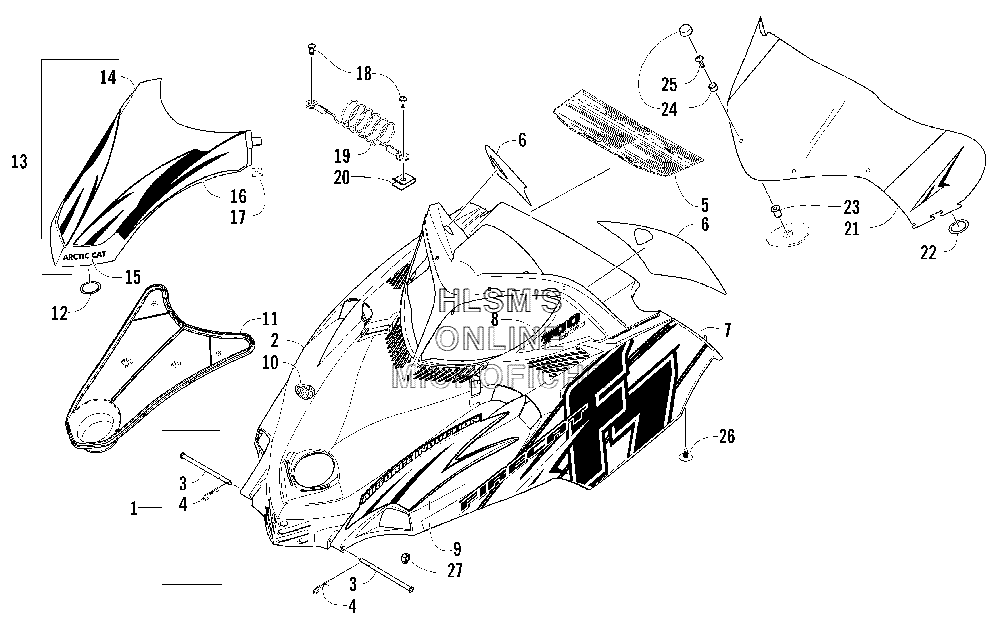

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat F7 Firecat EFI Sno Pro (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-842 HOOD W/DECALS (INC. 2, 9)
    HOOD W/DECALS (INC. 2, 9)
  • 2
    1718-638 HOOD W/O DECALS (INC. 3, 5)
    HOOD W/O DECALS (INC. 3, 5)
  • 3
    1623-026 PIN, CLEVIS
    PIN, CLEVIS
  • 4
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 5
    4611-496 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 6
    6611-926 DECAL, CONSOLE (RIGHT) (ORANGE)
    DECAL, CONSOLE (RIGHT) (ORANGE)
  • 6
    6611-927 DECAL, CONSOLE (LEFT) (ORANGE)
    DECAL, CONSOLE (LEFT) (ORANGE)
  • 7
    6611-932 DECAL, HOOD (LOWER/RIGHT) (ORANGE)
    DECAL, HOOD (LOWER/RIGHT) (ORANGE)
  • 7
    6611-933 DECAL, HOOD (LOWER/LEFT) (ORANGE)
    DECAL, HOOD (LOWER/LEFT) (ORANGE)
  • 8
    6611-940 DECAL, HOOD (RIGHT) (LIGHT ORANGE)
    DECAL, HOOD (RIGHT) (LIGHT ORANGE)
  • 8
    6611-941 DECAL, HOOD (LEFT) (LIGHT ORANGE)
    DECAL, HOOD (LEFT) (LIGHT ORANGE)
  • 9
    6611-942 DECAL, HOOD (UPPER/RIGHT) (ORANGE)
    DECAL, HOOD (UPPER/RIGHT) (ORANGE)
  • 9
    6611-943 DECAL, HOOD (UPPER/LEFT) (ORANGE)
    DECAL, HOOD (UPPER/LEFT) (ORANGE)
  • 10
    0617-466 FOAM, HOOD
    FOAM, HOOD
  • 11
    3606-150 SCREEN, HOOD
    SCREEN, HOOD
  • 12
    2606-801 O-RING
    O-RING
  • 13
    1718-845 COVER, HOOD W/DECALS (INC. 14, 17)
    COVER, HOOD W/DECALS (INC. 14, 17)
  • 14
    2706-031 COVER, HOOD W/O DECALS
    COVER, HOOD W/O DECALS
  • 15
    3611-679 DECAL, HOOD, "ARCTIC CAT"
    DECAL, HOOD, "ARCTIC CAT"
  • 16
    6611-924 DECAL, COVER (RIGHT) (ORANGE)
    DECAL, COVER (RIGHT) (ORANGE)
  • 16
    6611-925 DECAL, COVER (LEFT) (ORANGE)
    DECAL, COVER (LEFT) (ORANGE)
  • 17
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 18
    0623-302 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 19
    2606-726 CABLE, HOOD
    CABLE, HOOD
  • 20
    1623-052 U, NUT
    U, NUT
  • 21
    4606-026 WINDSHIELD (BLACK W/ ORANGE GRAPHIC)
    WINDSHIELD (BLACK W/ ORANGE GRAPHIC)
  • 22
    0616-032 O-RING
    O-RING
  • 23
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 24
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 25
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    0623-544 PLUG
    PLUG
  • 27
    0123-394 CLIP, RETAINING
    CLIP, RETAINING
