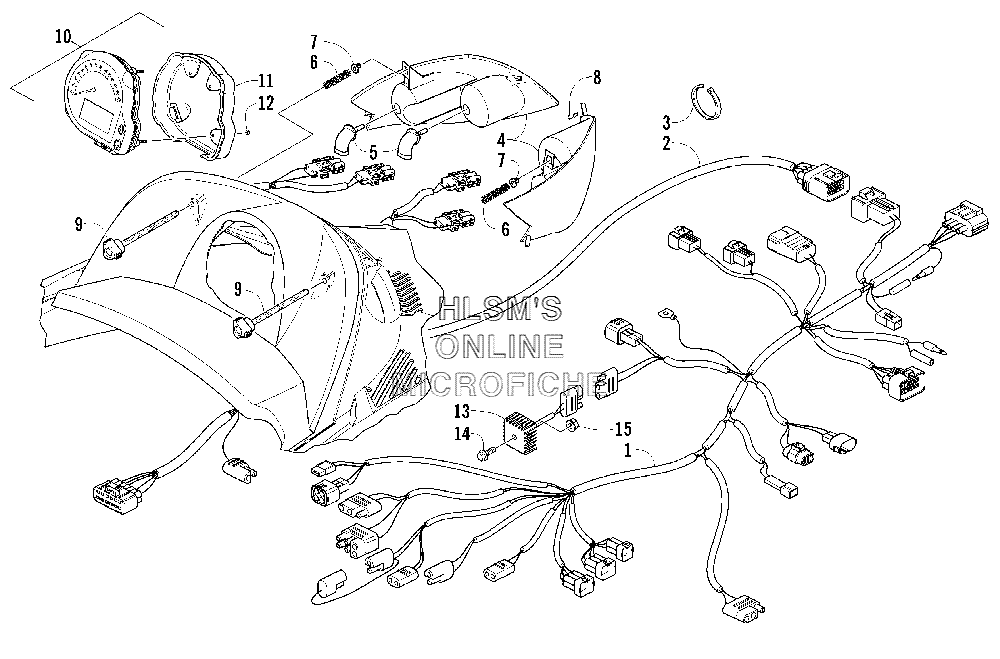

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat F6 Firecat EFI Sno Pro (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
11686-270 HARNESS, MAINHARNESS, MAIN
-
21686-257 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-292 TACHOMETER/SPEEDOMETER (INC. 11, 12)TACHOMETER/SPEEDOMETER (INC. 11, 12)
-
110620-281 BRACKET, RETAININGBRACKET, RETAINING
-
120620-280 NUT W/WASHERNUT W/WASHER
-
130630-182 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
148020-045 SCREW, CAPSCREW, CAP
-
158047-366 NUT, LOCKNUT, LOCK
