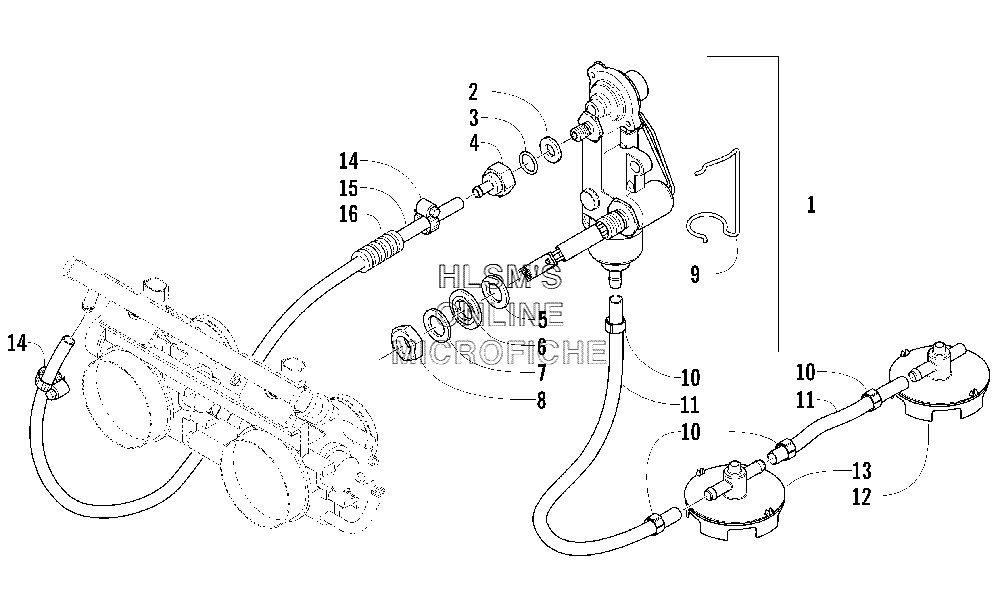

FUEL PUMP ASSEMBLY для Arctic Cat F6 Firecat EFI (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11670-781 PUMP, FUEL, ASSY (INC. 2, 9)PUMP, FUEL, ASSY (INC. 2, 9)
-
21670-535 GROMMETGROMMET
-
31670-476 O-RINGO-RING
-
41670-475 NUT, FUEL PUMP FITTINGNUT, FUEL PUMP FITTING
-
51670-534 GROMMETGROMMET
-
61670-479 WASHER, SEALING, THREADEDWASHER, SEALING, THREADED
-
71670-478 WASHERWASHER
-
81670-477 NUT, MOUNTINGNUT, MOUNTING
-
91670-579 RETAINER, WIRERETAINER, WIRE
-
100610-563 CLAMP, HOSECLAMP, HOSE
-
110610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
121670-618 PICKUP, FUELPICKUP, FUEL
-
131670-617 PICKUP, FUELPICKUP, FUEL
-
140623-373 CLAMP, HOSECLAMP, HOSE
-
150610-691 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
160716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
