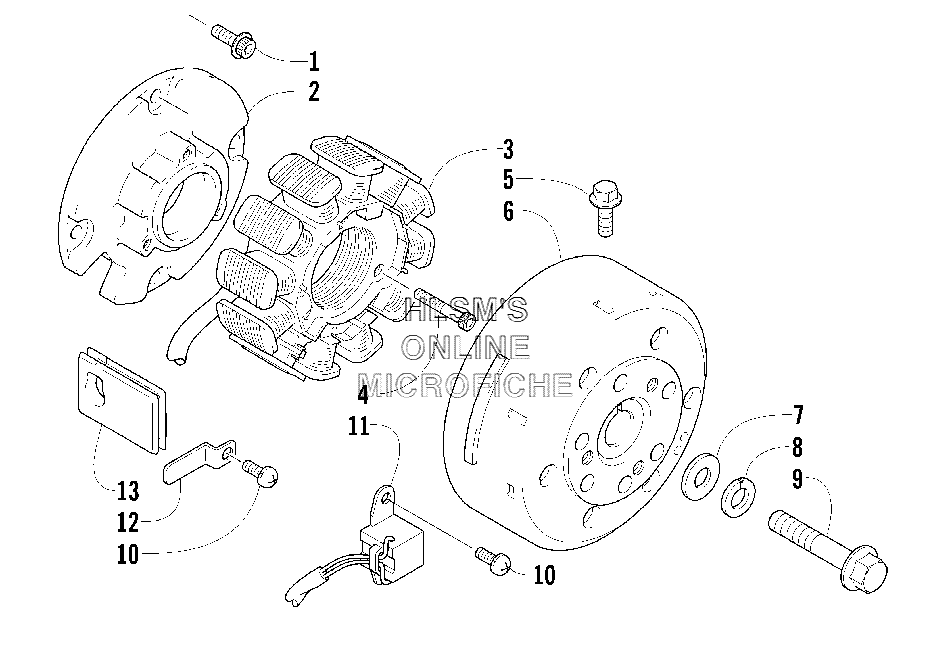

MAGNETO для Arctic Cat F5 Firecat Sno Pro (ORANGE) - 2006 года выпуска`
![](/wa-data/public/shop/sheme/arctic-cat/snow/7923661d-4c16-4260-b138-9a8a672d7e7a.gif)
-
№АртикулНазвание
-
13004-378 BOLTBOLT
-
23006-364 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
33006-734 STATORSTATOR
-
43003-307 BOLTBOLT
-
53004-338 BOLTBOLT
-
63006-362 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
73005-987 WASHERWASHER
-
83004-362 WASHER, LOCKWASHER, LOCK
-
93006-476 BOLTBOLT
-
103004-706 SCREWSCREW
-
113005-889 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
123005-960 PLATE, STATOR LEAD WIREPLATE, STATOR LEAD WIRE
-
133005-775 GROMMET, STATOR LEAD WIREGROMMET, STATOR LEAD WIRE
