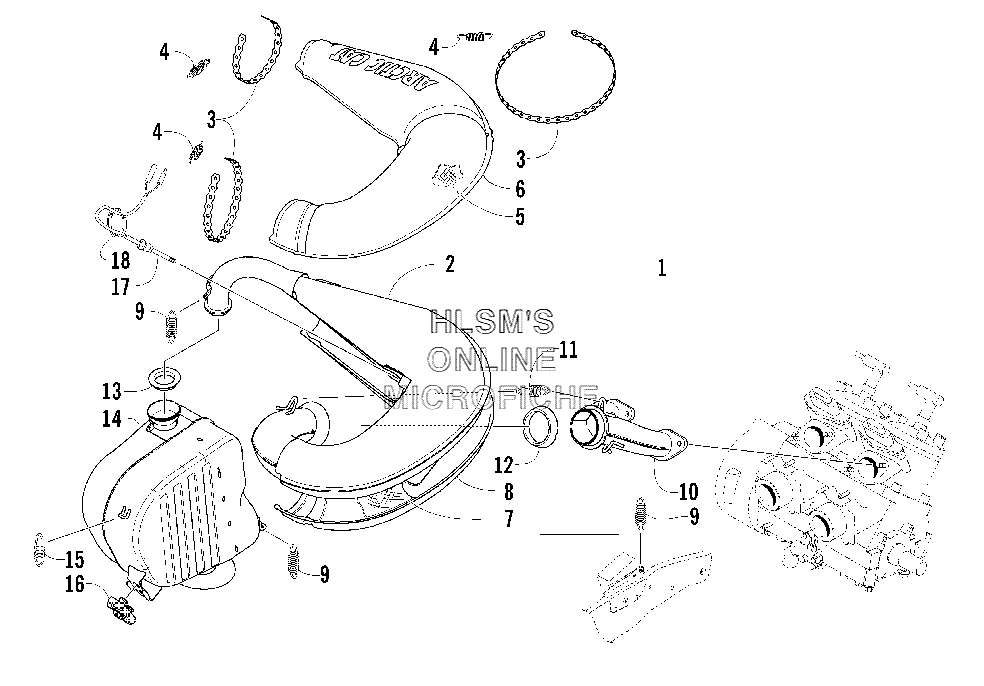

EXHAUST ASSEMBLY для Arctic Cat F5 Firecat (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-108 CHAMBER, EXPANSION, ASSY (INC. 2, 8)
    CHAMBER, EXPANSION, ASSY (INC. 2, 8)
  • 2
    1712-109 CHAMBER, EXPANSION
    CHAMBER, EXPANSION
  • 3
    0624-526 TIE, PERFORATED BAND, 5 FT
    TIE, PERFORATED BAND, 5 FT
  • 3
    0624-541 TIE, PERFORATED BAND, 25 FT
    TIE, PERFORATED BAND, 25 FT
  • 4
    1612-178 SPRING, EXHAUST
    SPRING, EXHAUST
  • 5
    1612-613 PACKING, EXPANSION CHAMBER (UPPER)
    PACKING, EXPANSION CHAMBER (UPPER)
  • 6
    1612-658 COVER, EXPANSION CHAMBER (UPPER)
    COVER, EXPANSION CHAMBER (UPPER)
  • 7
    1612-802 PACKING, EXPANSION CHAMBER (LOWER)
    PACKING, EXPANSION CHAMBER (LOWER)
  • 8
    1612-803 COVER, EXPANSION CHAMBER (LOWER)
    COVER, EXPANSION CHAMBER (LOWER)
  • 9
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 10
    1712-100 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 11
    0612-820 SPRING, EXTENSION
    SPRING, EXTENSION
  • 12
    1612-014 GASKET, EXHAUST
    GASKET, EXHAUST
  • 13
    0612-693 GASKET, EXHAUST, TAILPIPE
    GASKET, EXHAUST, TAILPIPE
  • 14
    1712-020 RESONATOR
    RESONATOR
  • 15
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 16
    1612-685 MOUNT, RESONATOR, RUBBER
    MOUNT, RESONATOR, RUBBER
  • 17
    0630-145 SENSOR, HEAT, EXHAUST
    SENSOR, HEAT, EXHAUST
  • 18
    0123-811 TIE, CABLE
    TIE, CABLE
