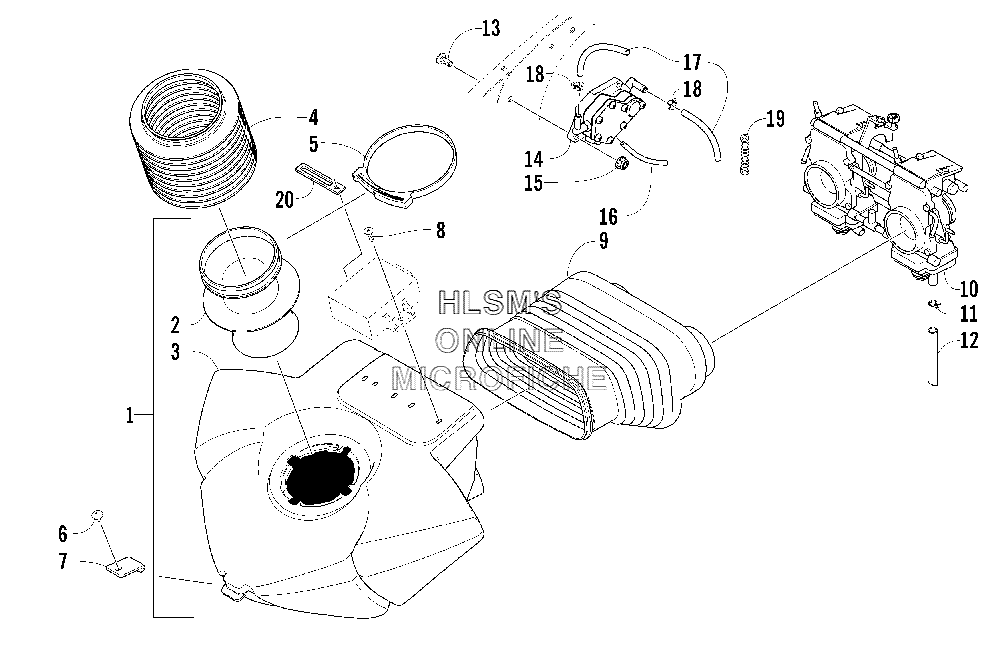

AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY для Arctic Cat F5 Firecat (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
10770-720 SILENCER, AIR, ASSY (INC. 2, 3)SILENCER, AIR, ASSY (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-774 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, PLASTITESCREW, PLASTITE
-
91670-582 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
101670-569 CARBURETOR, TM38, B379CARBURETOR, TM38, B379
-
110623-652 CLAMP, HOSECLAMP, HOSE
-
120610-442 HOSE, DRAINHOSE, DRAIN
-
138017-582 SCREW, MACHINESCREW, MACHINE
-
141670-416 PUMP, FUELPUMP, FUEL
-
158047-366 NUT, LOCKNUT, LOCK
-
160610-007 HOSE, IMPULSEHOSE, IMPULSE
-
170610-692 HOSE, GASLINE, 25 FTHOSE, GASLINE, 25 FT
-
170610-693 HOSE, GASLINE, 100 FTHOSE, GASLINE, 100 FT
-
180124-045 CLAMP, HOSECLAMP, HOSE
-
190716-558 LOOM, PROTECTIVE, 10 FTLOOM, PROTECTIVE, 10 FT
-
203002-964 CLAMPCLAMP
