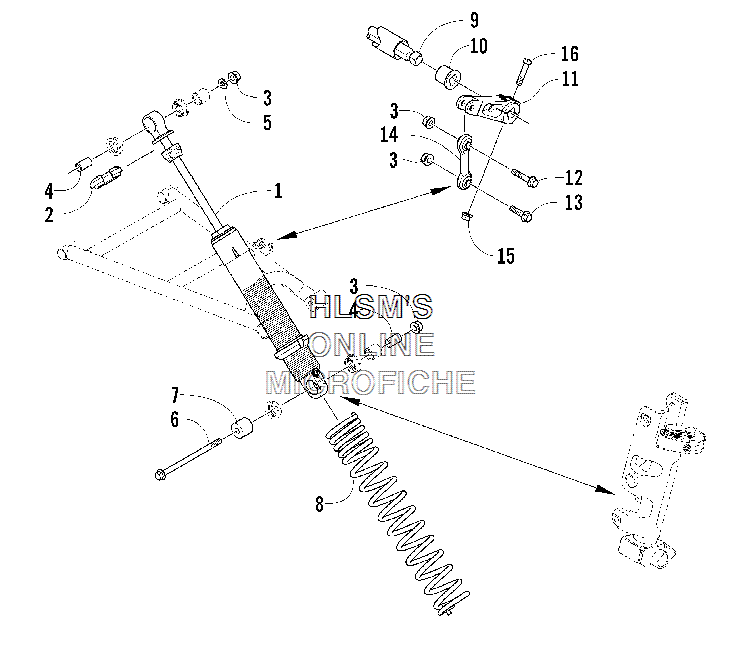

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat CrossFire 700 EFI (WEST YELLOWSTONE ORANGE) - 2006 года выпуска`
-
№АртикулНазвание
-
12703-008 SHOCK, SKISHOCK, SKI
-
21603-890 RETAINER, SPRINGRETAINER, SPRING
-
38047-486 NUT, LOCKNUT, LOCK
-
41603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
50623-991 WASHERWASHER
-
68020-232 SCREW, CAPSCREW, CAP
-
70603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
81703-900 SPRING, COMPRESSIONSPRING, COMPRESSION
-
91703-616 SWAY BARSWAY BAR
-
101603-211 BEARINGBEARING
-
112603-307 ARM, SWAY BARARM, SWAY BAR
-
128020-226 SCREW, CAPSCREW, CAP
-
138020-225 SCREW, CAPSCREW, CAP
-
141603-002 LINK, SWAY BARLINK, SWAY BAR
-
158047-426 NUT, LOCKNUT, LOCK
-
168002-137 SCREW, CAPSCREW, CAP
