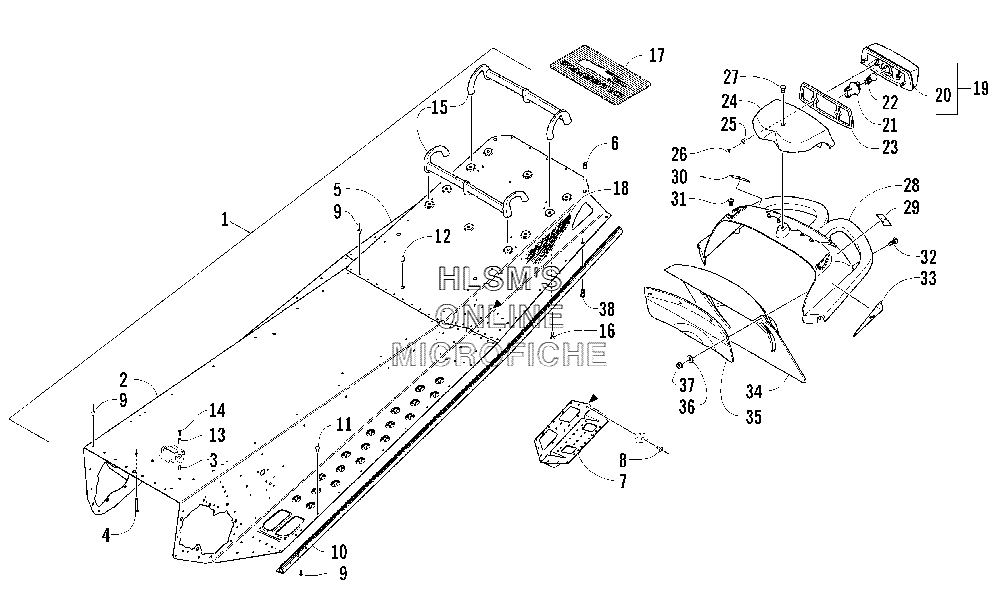

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (GREEN) - 2006 года выпуска`
-
№АртикулНазвание
-
-1707-093 COMPLETE CHASSISCOMPLETE CHASSIS
-
11718-940 TUNNEL ASSY (INC. 2, 9)TUNNEL ASSY (INC. 2, 9)
-
20707-989 TUNNEL (FRONT) (INC. 3, 4)TUNNEL (FRONT) (INC. 3, 4)
-
31623-127 INSERTINSERT
-
41623-070 STUD, SELF, CLINCHINGSTUD, SELF, CLINCHING
-
51718-939 TUNNEL (REAR) (INC. 6)TUNNEL (REAR) (INC. 6)
-
60623-582 INSERTINSERT
-
73706-152 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
73706-153 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
88060-686 RIVETRIVET
-
98060-484 RIVETRIVET
-
103606-530 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
103606-531 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
110123-418 RIVETRIVET
-
118060-486 RIVETRIVET
-
120623-562 PLUG, HOLEPLUG, HOLE
-
131623-045 SPACERSPACER
-
148017-406 SCREW, MACHINESCREW, MACHINE
-
153606-584 RACKRACK
-
168017-577 SCREW, MACHINESCREW, MACHINE
-
174606-149 PAD, RUBBERPAD, RUBBER
-
187611-442 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
187611-443 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
190509-022 TAILLIGHT ASSY (INC. 20, 22)TAILLIGHT ASSY (INC. 20, 22)
-
200509-025 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
210409-057 SOCKET, TAILLIGHTSOCKET, TAILLIGHT
-
220409-056 BULB, TAILLIGHTBULB, TAILLIGHT
-
234606-382 SPACER, TAILLIGHTSPACER, TAILLIGHT
-
243606-747 HOUSING, TAILLIGHT MOUNTINGHOUSING, TAILLIGHT MOUNTING
-
258050-127 WASHERWASHER
-
260623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
271623-513 SCREW, MACHINESCREW, MACHINE
-
283606-431 BUMPER (REAR)BUMPER (REAR)
-
295611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
305611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
318017-607 SCREW, MACHINESCREW, MACHINE
-
328017-581 SCREW, MACHINESCREW, MACHINE
-
336611-012 DECAL, REFLECTOR (RED/RIGHT)DECAL, REFLECTOR (RED/RIGHT)
-
336611-013 DECAL, REFLECTOR (RED/LEFT)DECAL, REFLECTOR (RED/LEFT)
-
344606-227 SNOWFLAPSNOWFLAP
-
353606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
360623-184 WASHERWASHER
-
378047-366 NUT, LOCKNUT, LOCK
-
381623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
