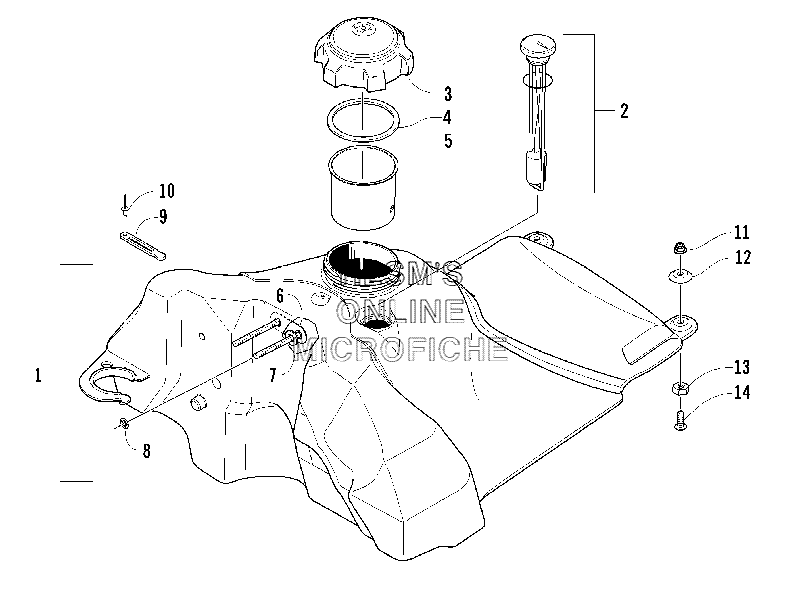

GAS TANK ASSEMBLY для Arctic Cat CrossFire 700 EFI EARLY BUILD (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10770-718 TANK, GAS (INC. 2, 8)TANK, GAS (INC. 2, 8)
-
21670-725 GAUGE, FUEL, ASSY W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSY W/GASKET (PRESS, FIT)
-
31670-447 CAP, GAS TANK (INC. 4)CAP, GAS TANK (INC. 4)
-
41670-511 SEAL, TANK CAPSEAL, TANK CAP
-
51670-626 NECK, GAS TANK EXTENSIONNECK, GAS TANK EXTENSION
-
60605-769 PLATE, MOUNTING, STEERING POSTPLATE, MOUNTING, STEERING POST
-
71623-408 WASHER, RUBBERWASHER, RUBBER
-
81623-355 NUT, PUSHNUT, PUSH
-
93606-173 STRAP, HOLD, DOWN, COOLANT TANKSTRAP, HOLD, DOWN, COOLANT TANK
-
108061-628 RIVETRIVET
-
118047-366 NUT, LOCKNUT, LOCK
-
120123-765 WASHER, CUPWASHER, CUP
-
131623-077 NUTNUT
-
148017-582 SCREW, MACHINESCREW, MACHINE
