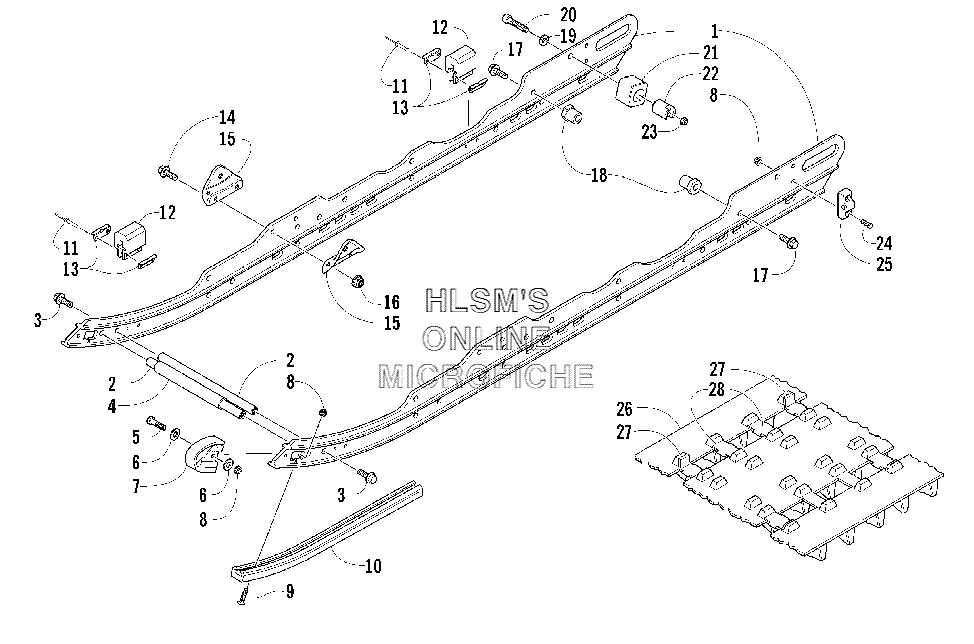

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat CrossFire 700 EFI (BLACK) - 2006 года выпуска`
-
№АртикулНазвание
-
13604-009 RAIL, FORMEDRAIL, FORMED
-
20604-930 AXLE (INNER)AXLE (INNER)
-
31623-248 SCREW, CAPSCREW, CAP
-
42604-281 SPACERSPACER
-
58002-043 SCREW, CAPSCREW, CAP
-
68050-217 WASHERWASHER
-
72604-842 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88047-366 NUT, LOCKNUT, LOCK
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
102604-257 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
118060-633 RIVET, BLINDRIVET, BLIND
-
120604-918 PAD, SHOCKPAD, SHOCK
-
130604-967 BRACKET, RETAININGBRACKET, RETAINING
-
148020-132 SCREW, CAPSCREW, CAP
-
152604-593 BRACKET, MOUNTING, ARM (FRONT)BRACKET, MOUNTING, ARM (FRONT)
-
168047-426 NUT, LOCKNUT, LOCK
-
171623-427 SCREW, CAPSCREW, CAP
-
182604-562 BUSHING, STOP, ARM (REAR)BUSHING, STOP, ARM (REAR)
-
190623-044 WASHERWASHER
-
208005-676 SCREW, CAPSCREW, CAP
-
212604-860 BLOCK, COUPLINGBLOCK, COUPLING
-
222604-046 BUSHING, BLOCK, COUPLINGBUSHING, BLOCK, COUPLING
-
238041-486 NUT, LOCKNUT, LOCK
-
248002-042 SCREW, CAPSCREW, CAP
-
250704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
261602-865 TRACK ASSY (INC. 27, 28)TRACK ASSY (INC. 27, 28)
-
271602-899 CLIP, GUIDECLIP, GUIDE
-
280602-541 CLIP, WEARCLIP, WEAR
-
287998-943 COMPLETE SKID FRAME ASSYCOMPLETE SKID FRAME ASSY
