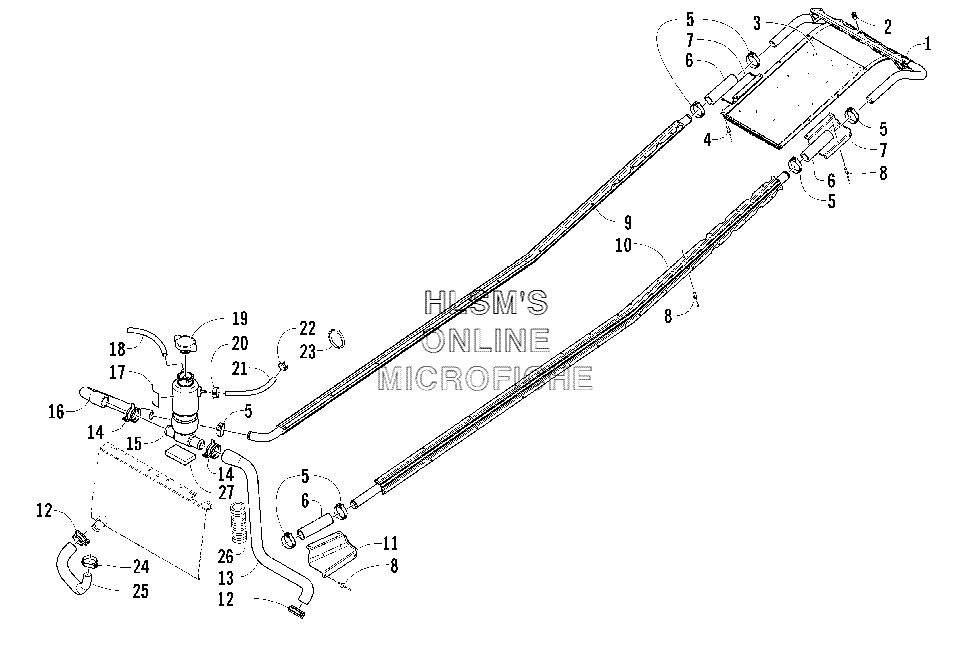

COOLING ASSEMBLY для Arctic Cat Crossfire 600 EFI (ORANGE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3706-345 HEAT EXCHANGER (REAR) (INC. 2, 3)
    HEAT EXCHANGER (REAR) (INC. 2, 3)
  • 2
    0623-582 INSERT
    INSERT
  • 3
    0617-509 FOAM, TUNNEL/HEAT EXCHANGER
    FOAM, TUNNEL/HEAT EXCHANGER
  • 4
    8060-706 RIVET
    RIVET
  • 5
    1623-349 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    0610-552 HOSE, COOLANT
    HOSE, COOLANT
  • 7
    3606-564 PROTECTOR, HOSE (REAR)
    PROTECTOR, HOSE (REAR)
  • 8
    8060-504 RIVET
    RIVET
  • 8
    8060-508 RIVET
    RIVET
  • 9
    3606-518 HEAT EXCHANGER (RIGHT)
    HEAT EXCHANGER (RIGHT)
  • 10
    3606-519 HEAT EXCHANGER (LEFT)
    HEAT EXCHANGER (LEFT)
  • 11
    3606-565 PROTECTOR, HOSE (FRONT)
    PROTECTOR, HOSE (FRONT)
  • 12
    1623-229 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    0610-625 HOSE, COOLANT TANK/ENGINE
    HOSE, COOLANT TANK/ENGINE
  • 14
    1623-322 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    2706-791 TANK, COOLANT
    TANK, COOLANT
  • 16
    0610-553 HOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
    HOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
  • 17
    2611-758 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 18
    0610-016 HOSE, VENT, 25 FT
    HOSE, VENT, 25 FT
  • 18
    0610-015 HOSE, VENT, 100 FT
    HOSE, VENT, 100 FT
  • 19
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 20
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0610-538 HOSE, COOLANT, 25 FT
    HOSE, COOLANT, 25 FT
  • 22
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0123-788 CABLE TIE, 7.5 IN.
    CABLE TIE, 7.5 IN.
  • 24
    1623-350 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    0610-626 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
  • 26
    1619-038 PROTECTOR, HOSE, 7 IN.
    PROTECTOR, HOSE, 7 IN.
  • 27
    4606-102 PAD, SUPPORT, COOLANT TANK
    PAD, SUPPORT, COOLANT TANK
