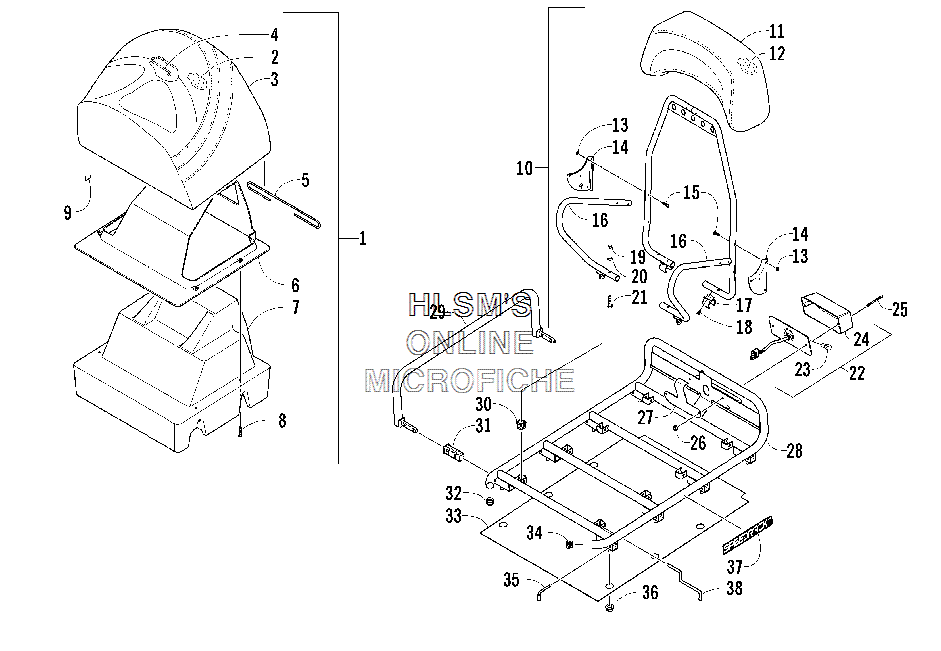

REAR SEAT- BACKREST- AND RACK ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo ARTICULATING - 2006 года выпуска`
-
№АртикулНазвание
-
17998-535 SEAT ASSY, PASSENGER (INC. 2, 9)SEAT ASSY, PASSENGER (INC. 2, 9)
-
22706-921 FOAM, SEATFOAM, SEAT
-
32706-969 COVER, SEAT (INC. 4)COVER, SEAT (INC. 4)
-
43606-363 WIRE, SEATWIRE, SEAT
-
52606-942 WIRE, SEATWIRE, SEAT
-
64606-123 TOP, SEAT, BASETOP, SEAT, BASE
-
73606-950 SEAT, BASESEAT, BASE
-
80623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90624-528 STAPLESTAPLE
-
102706-924 BACKREST ASSY (INC. 11, 18)BACKREST ASSY (INC. 11, 18)
-
113706-014 COVER, BACKRESTCOVER, BACKREST
-
120716-705 FOAM, BACKRESTFOAM, BACKREST
-
131623-527 NUT, CAPNUT, CAP
-
143706-220 BRACKET, BACKREST (RIGHT)BRACKET, BACKREST (RIGHT)
-
143706-221 BRACKET, BACKREST (LEFT)BRACKET, BACKREST (LEFT)
-
158017-403 SCREW, MACHINESCREW, MACHINE
-
163706-228 HANDGRIP (RIGHT)HANDGRIP (RIGHT)
-
163706-229 HANDGRIP (LEFT)HANDGRIP (LEFT)
-
173606-927 CLIP, BACKRESTCLIP, BACKREST
-
180623-786 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190123-108 NUT, LOCKNUT, LOCK
-
208050-217 WASHERWASHER
-
218002-044 SCREW, CAPSCREW, CAP
-
220609-708 TAILLIGHT ASSY (INC. 23, 24)TAILLIGHT ASSY (INC. 23, 24)
-
230109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
240609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
251623-148 SCREW, MACHINESCREW, MACHINE
-
260123-709 NUT W/WASHERNUT W/WASHER
-
273706-091 GUARD, TAILLIGHTGUARD, TAILLIGHT
-
282706-930 RACKRACK
-
292706-959 SIDE, RACKSIDE, RACK
-
300441-592 BUSHING, RACKBUSHING, RACK
-
312406-014 BUSHING, RACKBUSHING, RACK
-
324606-113 GROMMETGROMMET
-
334606-377 MAT, RACKMAT, RACK
-
340623-831 PLUG, RACKPLUG, RACK
-
350541-447 PIN, RACKPIN, RACK
-
368047-486 NUT, LOCKNUT, LOCK
-
370411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
381623-422 PIN, BACKRESTPIN, BACKREST
