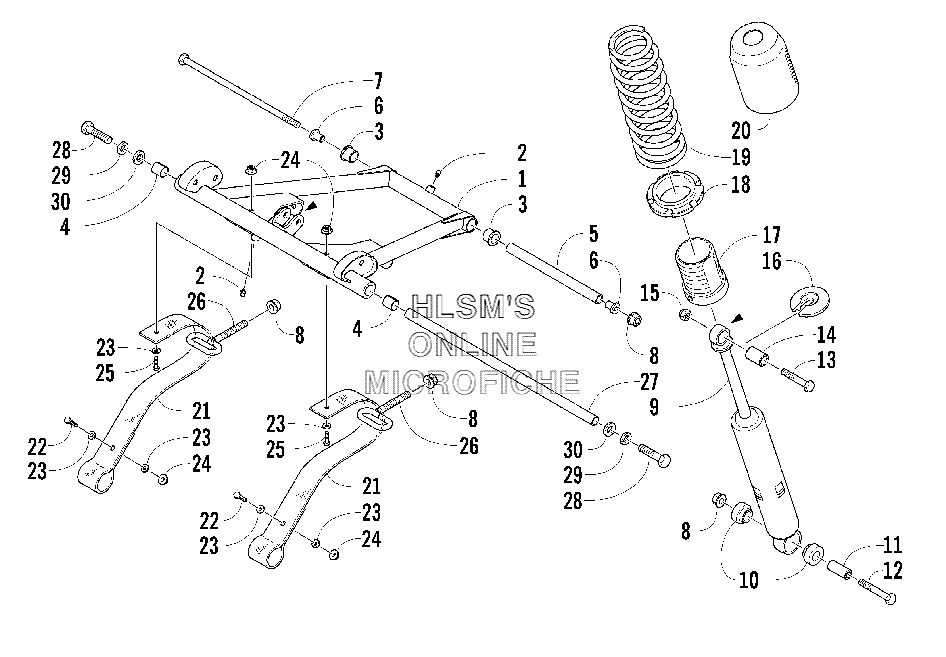

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Bearcat WIDE TRACK INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11704-269 ARM, SUSPENSION (FRONT) (INC. 2, 4)ARM, SUSPENSION (FRONT) (INC. 2, 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30104-386 BUSHING, ARM (FRONT)BUSHING, ARM (FRONT)
-
40603-083 BEARINGBEARING
-
51604-974 TUBE, AXLETUBE, AXLE
-
60603-061 AXLE, SERRATEDAXLE, SERRATED
-
71623-064 SCREW, CAPSCREW, CAP
-
88047-486 NUT, LOCKNUT, LOCK
-
91604-369 SHOCK ABSORBER, ARM (FRONT)SHOCK ABSORBER, ARM (FRONT)
-
101604-384 BUSHING, SHOCKBUSHING, SHOCK
-
111604-329 AXLE, PIVOT, SHOCKAXLE, PIVOT, SHOCK
-
128020-228 SCREW, CAPSCREW, CAP
-
138020-226 SCREW, CAPSCREW, CAP
-
140603-030 AXLE, SERRATEDAXLE, SERRATED
-
158041-486 NUT, LOCKNUT, LOCK
-
161603-889 RETAINER, SPRINGRETAINER, SPRING
-
170603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
180603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
191703-072 SPRING, COMPRESSIONSPRING, COMPRESSION
-
200604-590 COVER, SHOCKCOVER, SHOCK
-
212604-832 STRAP, LIMITERSTRAP, LIMITER
-
228002-043 SCREW, CAPSCREW, CAP
-
230623-184 WASHERWASHER
-
248047-366 NUT, LOCKNUT, LOCK
-
258002-040 SCREW, CAPSCREW, CAP
-
260704-256 ADJUSTER, ARM (FRONT)ADJUSTER, ARM (FRONT)
-
270604-948 AXLE, CARRIAGE (INNER)AXLE, CARRIAGE (INNER)
-
288002-224 SCREW, CAPSCREW, CAP
-
298051-277 WASHER, LOCKWASHER, LOCK
-
300623-044 WASHERWASHER
