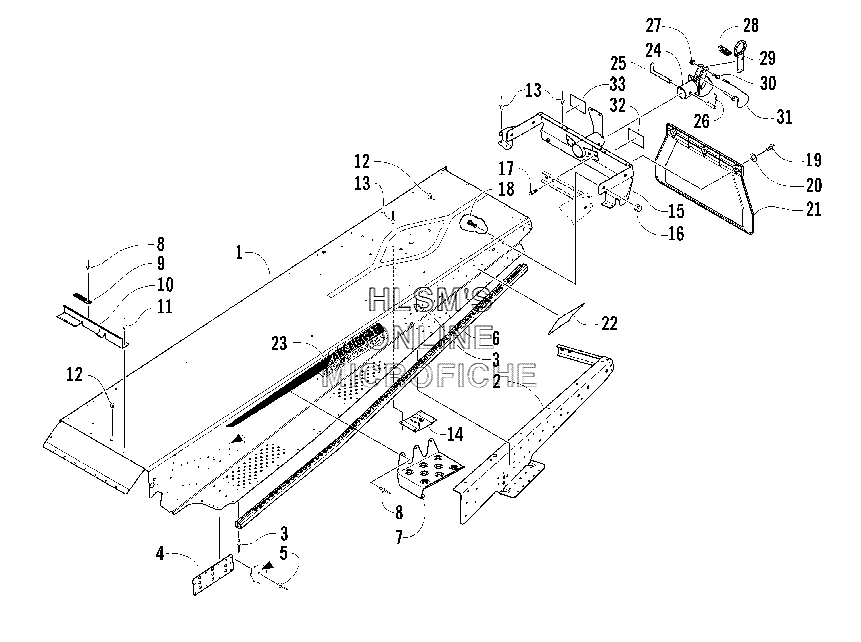

TUNNEL- REAR BUMPER- AND HITCH ASSEMBLY для Arctic Cat Bearcat 570 LONG TRACK INTERNATIONAL - 2006 года выпуска`
-
№АртикулНазвание
-
11718-603 TUNNEL ASSY (INC. 2, 3)TUNNEL ASSY (INC. 2, 3)
-
20707-792 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
20707-793 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
38060-484 RIVETRIVET
-
42706-111 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
50623-072 RIVET, SOLIDRIVET, SOLID
-
63606-166 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
63606-167 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
74606-006 FOOTREST (REAR/RIGHT)FOOTREST (REAR/RIGHT)
-
74606-007 FOOTREST (REAR/LEFT)FOOTREST (REAR/LEFT)
-
88060-486 RIVETRIVET
-
93002-964 CLAMP, WIRECLAMP, WIRE
-
100707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
110623-166 RIVETRIVET
-
120623-562 PLUG, HOLEPLUG, HOLE
-
138060-504 RIVETRIVET
-
142706-378 PLATE, CATCH, SEAT LATCHPLATE, CATCH, SEAT LATCH
-
152706-371 BUMPER (REAR)BUMPER (REAR)
-
160623-426 NUT, CAPNUT, CAP
-
178020-039 SCREW, CAPSCREW, CAP
-
188020-220 SCREW, CAPSCREW, CAP
-
198017-580 SCREW, MACHINESCREW, MACHINE
-
200623-184 WASHERWASHER
-
210616-613 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
226611-688 DECAL, REFLECTOR (RIGHT)DECAL, REFLECTOR (RIGHT)
-
226611-689 DECAL, REFLECTOR (LEFT)DECAL, REFLECTOR (LEFT)
-
236611-552 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
236611-553 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
242706-853 HITCH, PINTLEHITCH, PINTLE
-
252606-933 PIN, RECEIVERPIN, RECEIVER
-
260605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
278048-366 NUT, LOCKNUT, LOCK
-
280602-651 SPRINGSPRING
-
292706-503 LATCH, PINTLE HITCHLATCH, PINTLE HITCH
-
308020-045 SCREW, CAPSCREW, CAP
-
313606-903 PIN, LOCKPIN, LOCK
-
325611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
335611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
