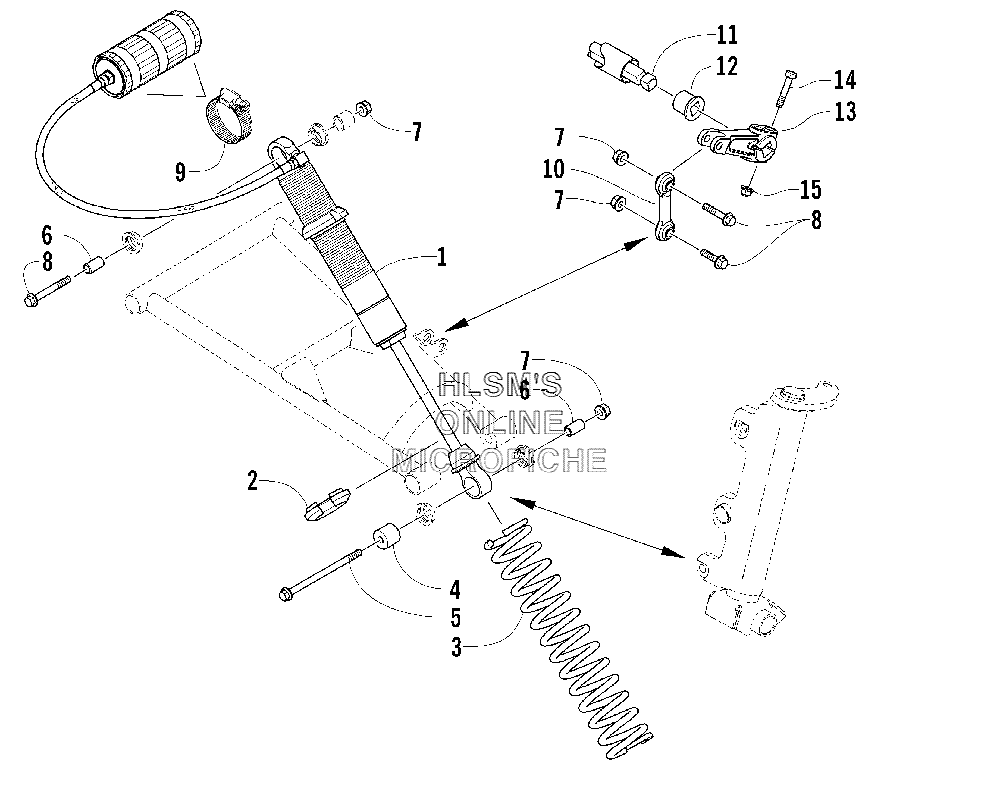

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat ZR 900 SNO PRO (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
11703-690 SHOCK SUSPENSION (FRONT/RIGHT)SHOCK SUSPENSION (FRONT/RIGHT)
-
11703-691 SHOCK SUSPENSION (FRONT/LEFT)SHOCK SUSPENSION (FRONT/LEFT)
-
21603-890 RETAINER, SPRINGRETAINER, SPRING
-
31703-692 SPRING, COMPRESSIONSPRING, COMPRESSION
-
40603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
58020-232 SCREW, CAPSCREW, CAP
-
61603-023 SLEEVE, SHOCK, POWDER METALSLEEVE, SHOCK, POWDER METAL
-
78048-486 NUT, LOCKNUT, LOCK
-
88020-226 SCREW, CAPSCREW, CAP
-
90214-025 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
101603-414 LINK, SWAY BARLINK, SWAY BAR
-
111703-618 SWAY BARSWAY BAR
-
120603-151 BEARINGBEARING
-
132603-307 ARM, SWAY BARARM, SWAY BAR
-
148002-137 SCREW, CAPSCREW, CAP
-
158048-426 NUT, LOCKNUT, LOCK
