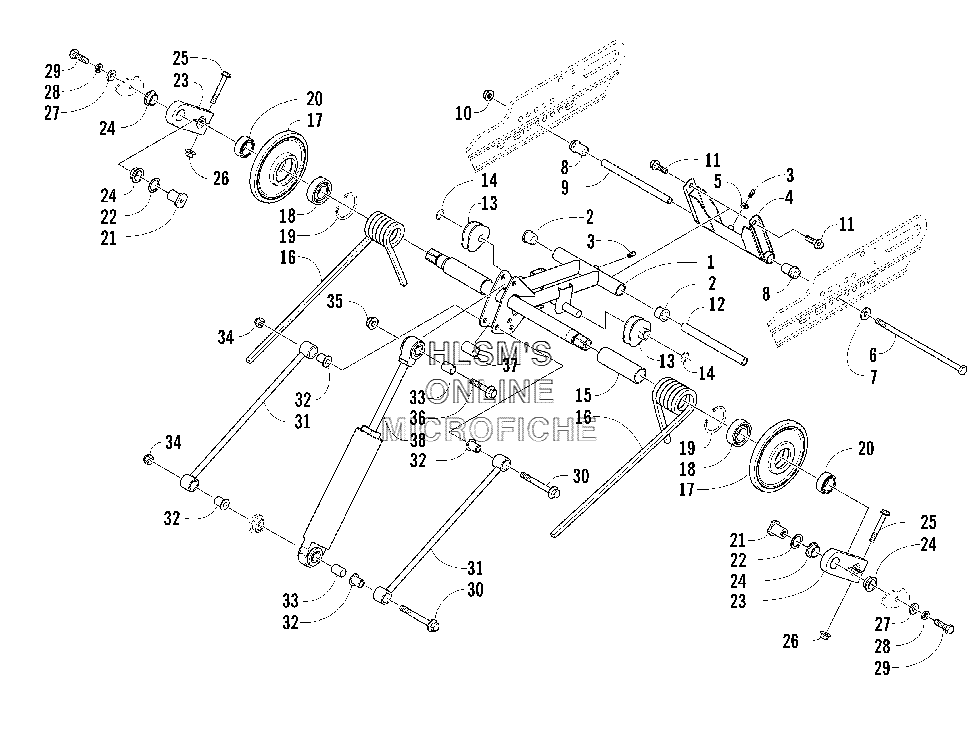

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat ZR 900 (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-026 ARM, IDLER (INC. 2 AND ONE NO. 3)
    ARM, IDLER (INC. 2 AND ONE NO. 3)
  • 2
    1604-100 BUSHING, FLARED
    BUSHING, FLARED
  • 3
    1623-010 FITTING, GREASE
    FITTING, GREASE
  • 4
    1704-019 ARM (REAR) (INC. ONE NO. 3 AND 5)
    ARM (REAR) (INC. ONE NO. 3 AND 5)
  • 5
    1623-011 WASHER, GREASE FITTING
    WASHER, GREASE FITTING
  • 6
    1623-037 SCREW, CAP
    SCREW, CAP
  • 7
    8050-272 WASHER
    WASHER
  • 8
    2604-664 BUSHING ARM (REAR)
    BUSHING ARM (REAR)
  • 9
    2604-663 TUBE, AXLE
    TUBE, AXLE
  • 10
    8047-490 NUT, LOCK
    NUT, LOCK
  • 11
    8020-220 SCREW, CAP
    SCREW, CAP
  • 12
    1604-208 AXLE, ALUMINUM
    AXLE, ALUMINUM
  • 13
    1604-204 BLOCK, SPRING ADJUSTER (RIGHT)
    BLOCK, SPRING ADJUSTER (RIGHT)
  • 13
    1604-205 BLOCK, SPRING ADJUSTER (LEFT)
    BLOCK, SPRING ADJUSTER (LEFT)
  • 14
    0623-138 RING, RETAINING
    RING, RETAINING
  • 15
    0114-254 SLEEVE, SPRING
    SLEEVE, SPRING
  • 16
    0704-902 SPRING, SUSPENSION (RIGHT)
    SPRING, SUSPENSION (RIGHT)
  • 16
    0704-901 SPRING, SUSPENSION (LEFT)
    SPRING, SUSPENSION (LEFT)
  • 17
    1604-690 WHEEL, IDLER (INC. 18, 19)
    WHEEL, IDLER (INC. 18, 19)
  • 18
    0107-598 BEARING
    BEARING
  • 19
    0123-798 RING, RETAINING
    RING, RETAINING
  • 20
    1604-507 SPACER, PIVOT IDLER ARM
    SPACER, PIVOT IDLER ARM
  • 21
    1604-181 AXLE, PIVOT IDLER ARM
    AXLE, PIVOT IDLER ARM
  • 22
    1604-187 WASHER, PIVOT IDLER ARM
    WASHER, PIVOT IDLER ARM
  • 23
    0704-981 ARM, PIVOT IDLER (INC. 24, 26)
    ARM, PIVOT IDLER (INC. 24, 26)
  • 24
    1604-202 BUSHING, FLARED
    BUSHING, FLARED
  • 25
    8020-138 SCREW, CAP
    SCREW, CAP
  • 26
    8048-426 NUT, LOCK
    NUT, LOCK
  • 27
    0623-044 WASHER
    WASHER
  • 28
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 29
    8002-224 SCREW, CAP
    SCREW, CAP
  • 30
    1623-219 SCREW, CAP
    SCREW, CAP
  • 31
    0704-350 LINK, INNER CARRIAGE
    LINK, INNER CARRIAGE
  • 32
    1604-498 AXLE, LINK, FLANGED
    AXLE, LINK, FLANGED
  • 33
    1604-139 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 34
    8041-486 NUT, LOCK
    NUT, LOCK
  • 35
    8048-486 NUT, LOCK
    NUT, LOCK
  • 36
    8020-226 SCREW, CAP
    SCREW, CAP
  • 37
    0704-854 SPACER, SHOCK LINK
    SPACER, SHOCK LINK
  • 38
    1704-257 SHOCK ABSORBER ARM (REAR)
    SHOCK ABSORBER ARM (REAR)
