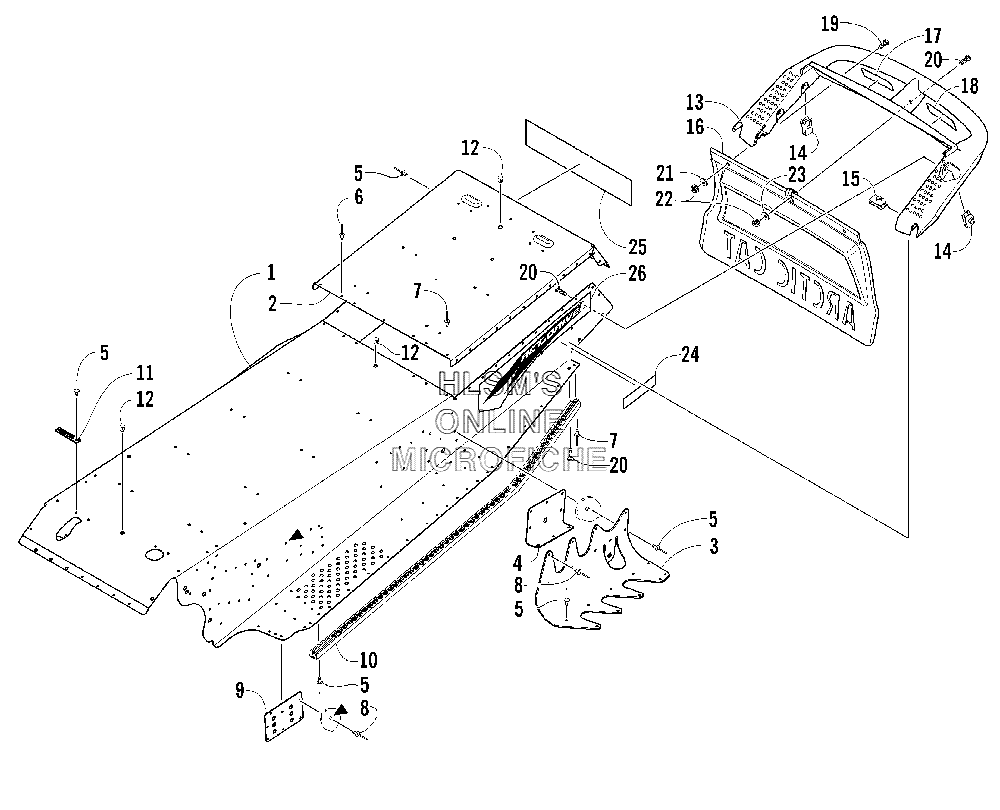

TUNNEL AND REAR BUMPER для Arctic Cat ZR 900 (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-711 TUNNEL ASSEMBLY (INC. 2, 8)
    TUNNEL ASSEMBLY (INC. 2, 8)
  • 2
    2606-867 PLATE, END TUNNEL (REAR)
    PLATE, END TUNNEL (REAR)
  • 3
    2606-238 BRACKET, MOUNTING SUSPENSION (REAR/RIGHT)
    BRACKET, MOUNTING SUSPENSION (REAR/RIGHT)
  • 3
    2606-239 BRACKET, MOUNTING SUSPENSION (REAR/LEFT)
    BRACKET, MOUNTING SUSPENSION (REAR/LEFT)
  • 4
    1706-854 PLATE, BACKING SUSPENSION (REAR)
    PLATE, BACKING SUSPENSION (REAR)
  • 5
    0123-418 RIVET
    RIVET
  • 5
    0623-806 RIVET
    RIVET
  • 5
    8060-506 RIVET
    RIVET
  • 6
    8060-686 RIVET
    RIVET
  • 7
    8060-484 RIVET
    RIVET
  • 8
    0623-072 RIVET
    RIVET
  • 9
    2706-116 PLATE, SUSPENSION MOUNTING (FRONT)
    PLATE, SUSPENSION MOUNTING (FRONT)
  • 10
    2606-426 ROLL, TUNNEL (RIGHT)
    ROLL, TUNNEL (RIGHT)
  • 10
    2606-425 ROLL, TUNNEL (LEFT)
    ROLL, TUNNEL (LEFT)
  • 11
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 12
    0623-562 PLUG, HOLE
    PLUG, HOLE
  • 13
    1606-200 BUMPER (REAR)
    BUMPER (REAR)
  • 14
    0623-771 NUT, U
    NUT, U
  • 15
    0623-427 NUT, U
    NUT, U
  • 16
    1606-202 SNOWFLAP
    SNOWFLAP
  • 16
    1606-507 SNOWFLAP, REVERSE
    SNOWFLAP, REVERSE
  • 17
    5611-852 DECAL, WARNING, TOWING (FRENCH)
    DECAL, WARNING, TOWING (FRENCH)
  • 18
    5611-853 DECAL, WARNING, TOWING (ENGLISH)
    DECAL, WARNING, TOWING (ENGLISH)
  • 19
    8017-579 SCREW, CAP
    SCREW, CAP
  • 20
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0623-184 WASHER
    WASHER
  • 22
    8048-366 NUT, LOCK
    NUT, LOCK
  • 23
    8050-217 WASHER
    WASHER
  • 24
    0411-647 DECAL, REFLECTOR (RED)
    DECAL, REFLECTOR (RED)
  • 25
    4611-112 DECAL, TUNNEL (REAR)
    DECAL, TUNNEL (REAR)
  • 26
    6611-374 DECAL, TUNNEL (RIGHT)
    DECAL, TUNNEL (RIGHT)
  • 26
    6611-375 DECAL, TUNNEL (LEFT)
    DECAL, TUNNEL (LEFT)
