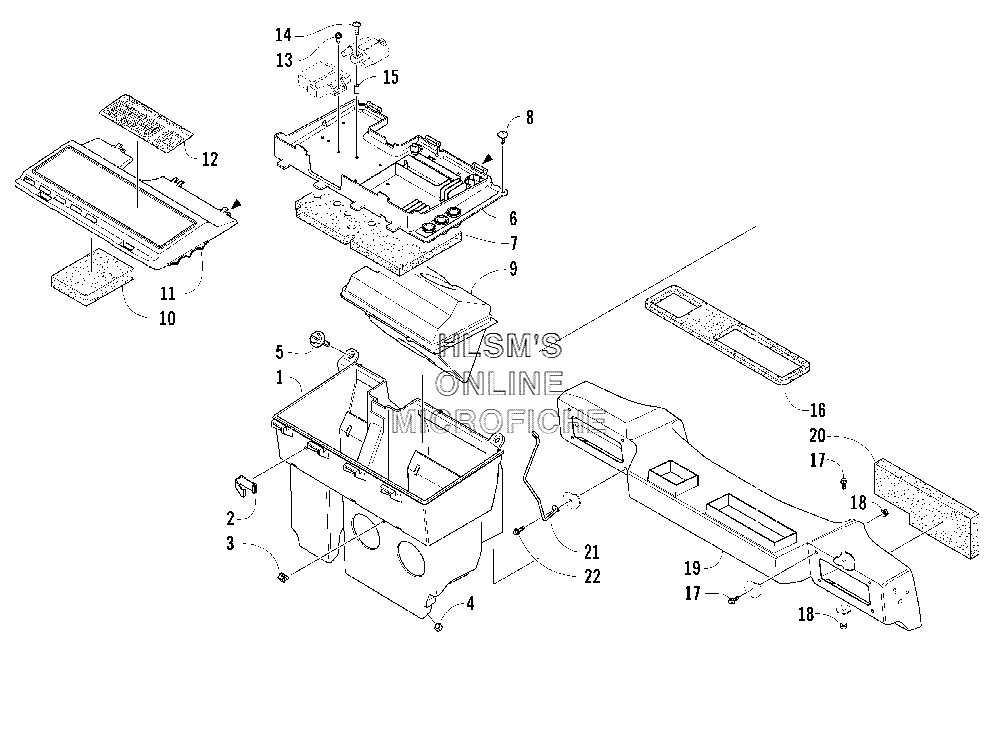

AIR SILENCER ASSEMBLY для Arctic Cat Z 570 LX (RED) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-579 SILENCER, AIR, ASSEMBLY
    SILENCER, AIR, ASSEMBLY
  • 2
    0623-792 CLIP, WIRE
    CLIP, WIRE
  • 3
    0623-403 CLAMP, PUSH, MOUNT
    CLAMP, PUSH, MOUNT
  • 4
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 5
    0623-780 SCREW, MACHINE, HEX SHOULDER
    SCREW, MACHINE, HEX SHOULDER
  • 6
    1670-197 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 7
    0617-393 FOAM, COVER, AIR SILENCER
    FOAM, COVER, AIR SILENCER
  • 8
    0623-727 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    1670-061 RESONATOR, Q, WAVE
    RESONATOR, Q, WAVE
  • 10
    0617-411 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 11
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 12
    6611-440 DECAL, JET CHART
    DECAL, JET CHART
  • 13
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    8017-406 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    1623-045 SPACER
    SPACER
  • 16
    0617-245 SEAL, PLENUM/AIR SILENCER
    SEAL, PLENUM/AIR SILENCER
  • 17
    8020-039 SCREW, CAP
    SCREW, CAP
  • 18
    8048-366 NUT, LOCK
    NUT, LOCK
  • 19
    1670-327 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 20
    0617-270 FOAM, PLENUM, INTAKE
    FOAM, PLENUM, INTAKE
  • 21
    0707-705 BRACKET, GUARD, HARNESS/ROPE
    BRACKET, GUARD, HARNESS/ROPE
  • 22
    8020-040 SCREW, CAP
    SCREW, CAP
