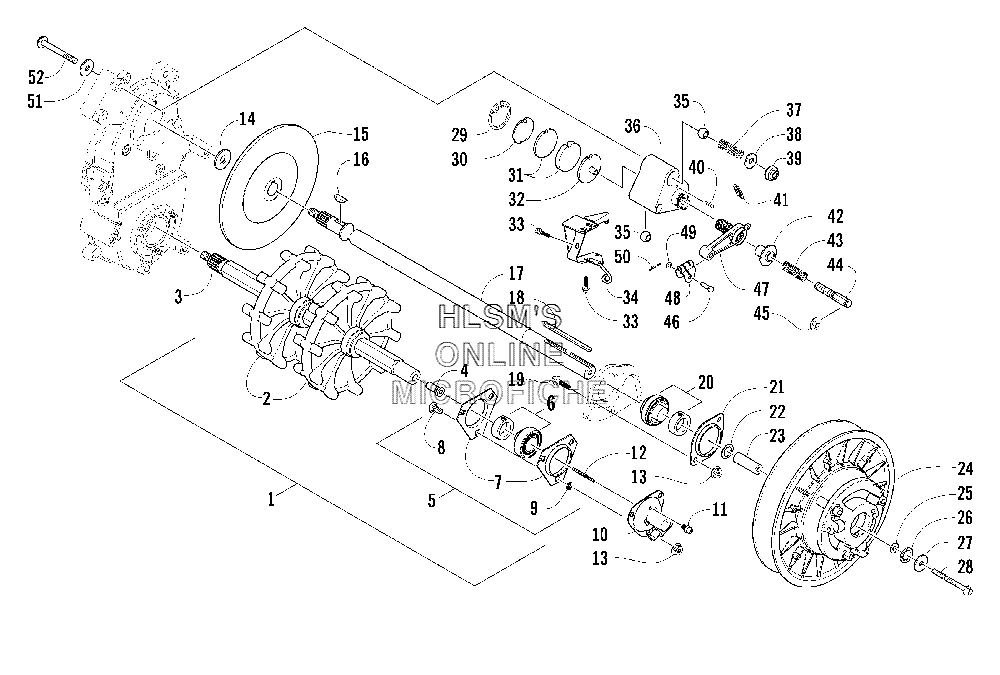

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Z 440 LX - 2005 года выпуска`
-
№АртикулНазвание
-
10728-065 TRACK DRIVE ASSY (INC. 2, 4)TRACK DRIVE ASSY (INC. 2, 4)
-
21602-200 SPROCKET, DRIVESPROCKET, DRIVE
-
30602-487 DRIVESHAFTDRIVESHAFT
-
40120-247 BUSHING, DRIVEBUSHING, DRIVE
-
50702-476 PLATE, FLANGE, BEARING ASSY (INC. 6, 9)PLATE, FLANGE, BEARING ASSY (INC. 6, 9)
-
61602-375 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
90623-810 RING, SOLDERRING, SOLDER
-
100720-005 ADAPTER, DRIVE (INC. 11)ADAPTER, DRIVE (INC. 11)
-
110104-062 FITTING, GREASEFITTING, GREASE
-
120602-154 CABLE, ADAPTERCABLE, ADAPTER
-
138048-426 NUT, LOCKNUT, LOCK
-
140623-912 WASHERWASHER
-
151602-206 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-468 SHAFT, DRIVENSHAFT, DRIVEN
-
180101-076 KEYKEY
-
198020-130 SCREW, CAPSCREW, CAP
-
201602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
220623-118 WASHERWASHER
-
220623-119 WASHERWASHER
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-161 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-578 WASHERWASHER
-
270123-019 WASHERWASHER
-
288020-142 SCREW, CAPSCREW, CAP
-
290602-502 RING, SNAPRING, SNAP
-
300602-775 PLATE, BACKING, STATIONARY PADPLATE, BACKING, STATIONARY PAD
-
310702-264 PAD, BRAKE, SETPAD, BRAKE, SET
-
320602-716 PISTON, BRAKE PADPISTON, BRAKE PAD
-
338020-039 SCREW, CAPSCREW, CAP
-
340702-283 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
350602-503 BALL, ALIGNMENTBALL, ALIGNMENT
-
360602-505 CALIPER, BRAKE ASSYCALIPER, BRAKE ASSY
-
370602-618 SPRING, COMPRESSIONSPRING, COMPRESSION
-
380623-450 WASHERWASHER
-
390602-622 NUT, BRAKE CALIPERNUT, BRAKE CALIPER
-
408070-316 PIN, SPRINGPIN, SPRING
-
410602-779 SPRING, RETURNSPRING, RETURN
-
421602-024 KNOB, BRAKE, ADJUSTERKNOB, BRAKE, ADJUSTER
-
430602-616 SPRING, COMPRESSIONSPRING, COMPRESSION
-
440602-515 SCREW, BRAKE, ADJUSTERSCREW, BRAKE, ADJUSTER
-
450124-057 E, RINGE, RING
-
460602-509 PIN, CLEVISPIN, CLEVIS
-
471602-022 ARM, ACTIVATORARM, ACTIVATOR
-
480602-508 CLEVISCLEVIS
-
498050-212 WASHERWASHER
-
500117-868 PIN, COTTERPIN, COTTER
-
518050-307 WASHERWASHER
-
520602-386 BOLT, MOUNTING, BRAKE CALIPERBOLT, MOUNTING, BRAKE CALIPER
