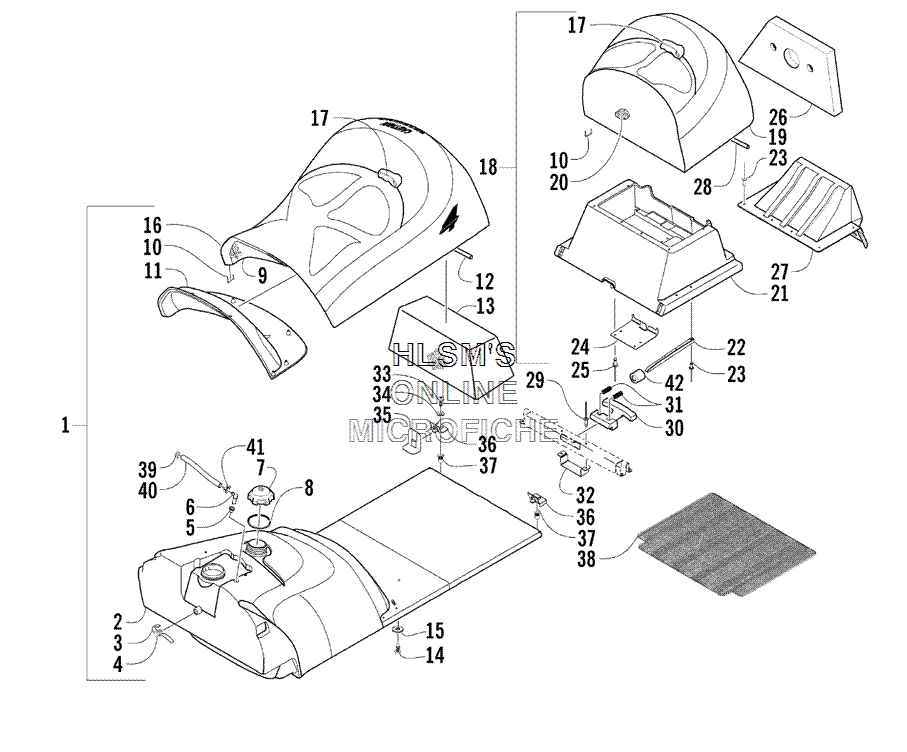

GAS TANK AND SEAT ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-781 COMPLETE SEAT ASSEMBLY (FRONT) (INC. 2, 16 AND ONE NO. 17)
    COMPLETE SEAT ASSEMBLY (FRONT) (INC. 2, 16 AND ONE NO. 17)
  • 2
    0770-589 TANK, GAS/SEAT, BASE (INC. 3, 8)
    TANK, GAS/SEAT, BASE (INC. 3, 8)
  • 3
    0670-289 TAPE, TEFLON
    TAPE, TEFLON
  • 4
    0670-243 PLUG, GAS TANK
    PLUG, GAS TANK
  • 5
    1670-325 GROMMET
    GROMMET
  • 6
    1670-494 VENT, GAS TANK
    VENT, GAS TANK
  • 7
    0670-341 CAP, GAS TANK (INC. 8)
    CAP, GAS TANK (INC. 8)
  • 8
    0109-733 SEAL, TANK CAP
    SEAL, TANK CAP
  • 9
    1706-158 FOAM, SEAT CUSHION (FRONT)
    FOAM, SEAT CUSHION (FRONT)
  • 10
    0624-528 STAPLE, SEAT COVER
    STAPLE, SEAT COVER
  • 11
    1606-612 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 12
    2606-943 WIRE, SEAT
    WIRE, SEAT
  • 13
    2606-133 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 14
    0623-309 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 15
    8050-217 WASHER
    WASHER
  • 16
    2706-677 COVER, SEAT (FRONT) (INC. ONE NO. 17)
    COVER, SEAT (FRONT) (INC. ONE NO. 17)
  • 17
    3606-363 WIRE, SEAT
    WIRE, SEAT
  • 18
    1718-548 COMPLETE SEAT ASSEMBLY, PASSENGER (INC. 10, 19, 28, AND ONE NO. 17)
    COMPLETE SEAT ASSEMBLY, PASSENGER (INC. 10, 19, 28, AND ONE NO. 17)
  • 19
    2706-352 COVER, SEAT, PASSENGER (INC. ONE NO. 17)
    COVER, SEAT, PASSENGER (INC. ONE NO. 17)
  • 20
    1706-159 FOAM, SEAT, PASSENGER
    FOAM, SEAT, PASSENGER
  • 21
    2606-066 SEAT, BASE, PASSENGER
    SEAT, BASE, PASSENGER
  • 22
    2606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)
    BRACKET, HOLD, DOWN, SEAT (RIGHT)
  • 22
    2606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)
    BRACKET, HOLD, DOWN, SEAT (LEFT)
  • 23
    0623-853 RIVET
    RIVET
  • 24
    2606-161 PLATE, STRIKE
    PLATE, STRIKE
  • 25
    0623-778 RIVET
    RIVET
  • 26
    0617-098 FOAM, SEAT, BASE/TAILLIGHT
    FOAM, SEAT, BASE/TAILLIGHT
  • 27
    1606-191 EXTENSION, TOOLBOX
    EXTENSION, TOOLBOX
  • 28
    2606-942 WIRE, SEAT
    WIRE, SEAT
  • 29
    8060-706 RIVET
    RIVET
  • 30
    2606-159 HANDLE, BACKREST, LATCH
    HANDLE, BACKREST, LATCH
  • 31
    2606-154 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 32
    2706-130 BRACKET, RETAINER, LATCH
    BRACKET, RETAINER, LATCH
  • 33
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    8050-222 WASHER
    WASHER
  • 35
    2606-268 GUARD, SEAT (RIGHT)
    GUARD, SEAT (RIGHT)
  • 35
    2606-269 GUARD, SEAT (LEFT)
    GUARD, SEAT (LEFT)
  • 36
    2706-134 BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
    BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
  • 36
    2706-135 BRACKET, HOLD, DOWN, RECEIVER (LEFT)
    BRACKET, HOLD, DOWN, RECEIVER (LEFT)
  • 37
    0623-582 INSERT
    INSERT
  • 38
    2606-180 PAD, RUBBER
    PAD, RUBBER
  • 39
    0623-101 CLIP, ROUTING, SNAP, INNER
    CLIP, ROUTING, SNAP, INNER
  • 40
    6101-001 HOSE, VENT (100 FT)
    HOSE, VENT (100 FT)
  • 40
    6101-009 HOSE, VENT (50 FT)
    HOSE, VENT (50 FT)
  • 41
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 42
    0612-107 SPACER
    SPACER
