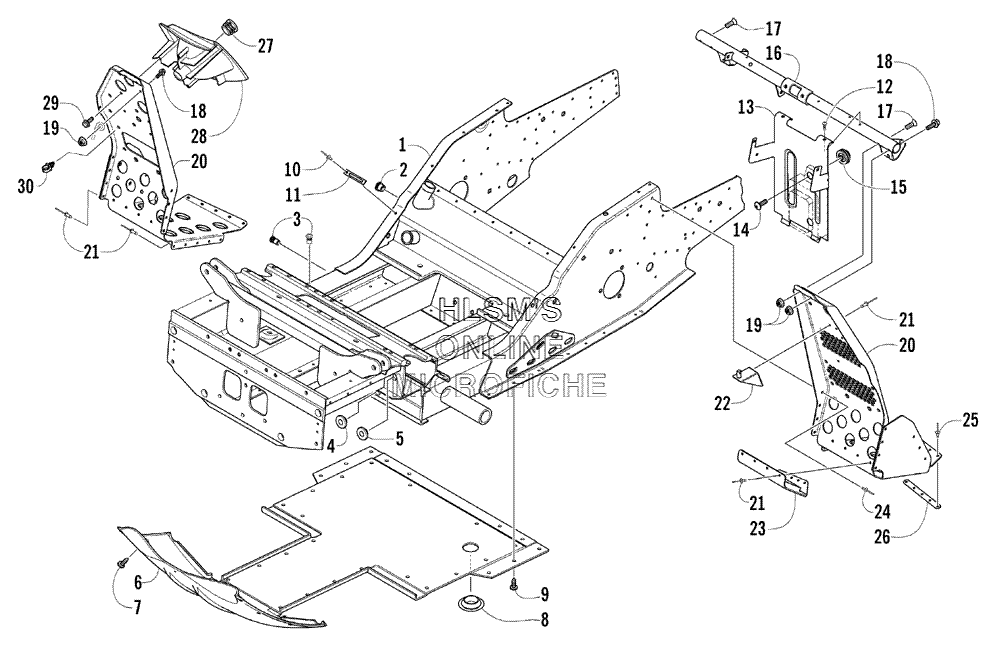

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat T660 Turbo ST (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-820 CHASSIS ASSEMBLY (INC. 2, 5)
    CHASSIS ASSEMBLY (INC. 2, 5)
  • 2
    0623-581 INSERT
    INSERT
  • 3
    0623-582 INSERT
    INSERT
  • 4
    0607-420 INSERT A, ARM MOUNT (LOWER)
    INSERT A, ARM MOUNT (LOWER)
  • 5
    0607-421 INSERT A, ARM MOUNT (UPPER)
    INSERT A, ARM MOUNT (UPPER)
  • 6
    2706-945 BELLY PAN, CENTER
    BELLY PAN, CENTER
  • 7
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    2606-367 PLUG, OIL DRAIN ACCESS
    PLUG, OIL DRAIN ACCESS
  • 9
    1623-129 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    8060-506 RIVET
    RIVET
  • 11
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 12
    1623-175 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    0745-215 BRACKET, MOUNTING, ECU
    BRACKET, MOUNTING, ECU
  • 14
    8476-625 SCREW, CAP
    SCREW, CAP
  • 15
    0645-359 MOUNT, ECU
    MOUNT, ECU
  • 16
    0705-963 SUPPORT, STEERING
    SUPPORT, STEERING
  • 17
    8019-614 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    8020-039 SCREW, CAP
    SCREW, CAP
  • 19
    8048-366 NUT, LOCK
    NUT, LOCK
  • 20
    2606-444 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 20
    2606-733 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 21
    0623-166 RIVET
    RIVET
  • 22
    0705-173 BRACKET, MOUNTING, BELT GUARD
    BRACKET, MOUNTING, BELT GUARD
  • 23
    2606-458 PLATE, BACKING (RIGHT)
    PLATE, BACKING (RIGHT)
  • 23
    2606-459 PLATE, BACKING (LEFT)
    PLATE, BACKING (LEFT)
  • 24
    0623-341 RIVET
    RIVET
  • 25
    0623-282 RIVET
    RIVET
  • 26
    2706-110 PLATE, BACKING, FOOTREST
    PLATE, BACKING, FOOTREST
  • 27
    0623-831 PLUG, RECOIL CUP
    PLUG, RECOIL CUP
  • 28
    1706-099 CUP, RECOIL
    CUP, RECOIL
  • 29
    0623-297 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 30
    0623-101 CLIP, ROUTING
    CLIP, ROUTING
