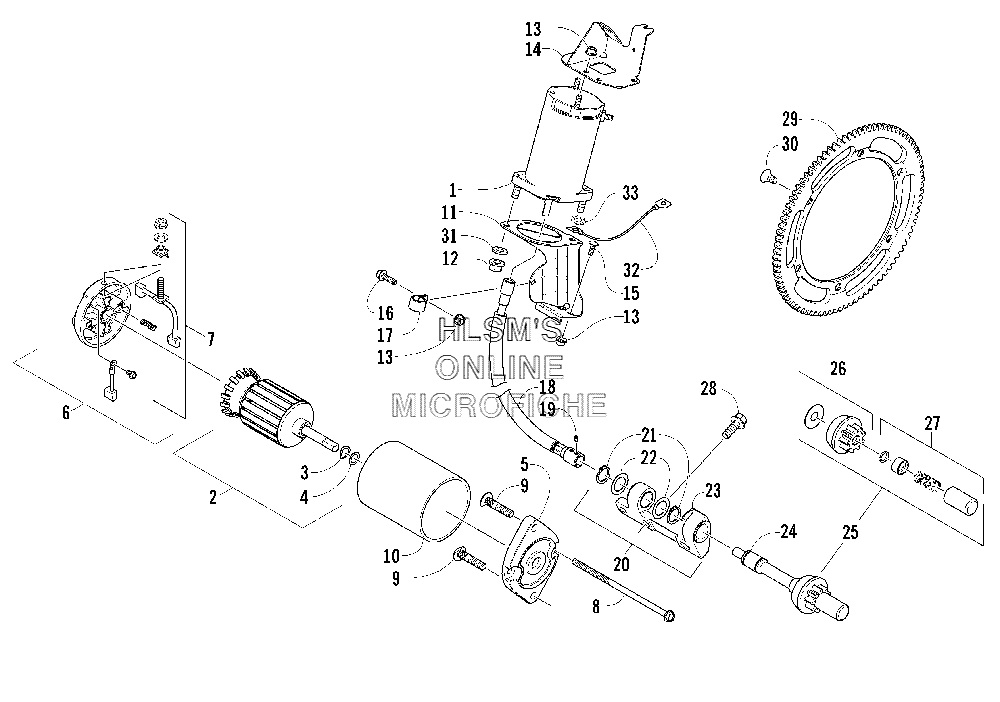

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat Sabercat 700 EFI EXT (RED) - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    3639-966 ELECTRIC START KIT
    ELECTRIC START KIT
  • 1
    0745-143 MOTOR, STARTER (INC. 2, 10)
    MOTOR, STARTER (INC. 2, 10)
  • 2
    0645-296 ARMATURE ASSEMBLY (INC. 3, 4)
    ARMATURE ASSEMBLY (INC. 3, 4)
  • 3
    0645-131 WASHER, WAVE
    WASHER, WAVE
  • 4
    0645-293 WASHER, THRUST
    WASHER, THRUST
  • 5
    0645-297 CAP, DRIVE
    CAP, DRIVE
  • 6
    0645-313 CAP, COMMUTATOR (INC. 7)
    CAP, COMMUTATOR (INC. 7)
  • 7
    0645-275 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 8
    0645-128 THROUGH, BOLT
    THROUGH, BOLT
  • 9
    0623-093 BOLT, RIBBED
    BOLT, RIBBED
  • 11
    0745-207 BRACKET, MOUNTING, STARTER MOTOR
    BRACKET, MOUNTING, STARTER MOTOR
  • 12
    8048-426 NUT, LOCK
    NUT, LOCK
  • 13
    8048-366 NUT, LOCK
    NUT, LOCK
  • 14
    0745-260 BRACKET, MOUNTING, STARTER MOTOR
    BRACKET, MOUNTING, STARTER MOTOR
  • 15
    8011-039 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 16
    8020-040 SCREW, CAP
    SCREW, CAP
  • 17
    1623-080 CLAMP, FLEX, DRIVE SHAFT
    CLAMP, FLEX, DRIVE SHAFT
  • 18
    0745-221 SHAFT, FLEX, DRIVE (INC. 19)
    SHAFT, FLEX, DRIVE (INC. 19)
  • 19
    0623-891 SCREW, SET, SOCKET
    SCREW, SET, SOCKET
  • 20
    0745-208 BRACKET, PINION DRIVE, ASSEMBLY (INC. 21, 27)
    BRACKET, PINION DRIVE, ASSEMBLY (INC. 21, 27)
  • 21
    0645-382 RING, SNAP
    RING, SNAP
  • 22
    0645-429 WASHER, THRUST
    WASHER, THRUST
  • 23
    0745-165 BRACKET, PINION DRIVE
    BRACKET, PINION DRIVE
  • 24
    0745-170 DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 25, 27)
    DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 25, 27)
  • 25
    0745-224 KIT, PINION DRIVE ASSEMBLY (INC. 26, 27)
    KIT, PINION DRIVE ASSEMBLY (INC. 26, 27)
  • 26
    0645-380 PINION DRIVE ASSEMBLY
    PINION DRIVE ASSEMBLY
  • 27
    0645-186 PINION STOPPER ASSEMBLY
    PINION STOPPER ASSEMBLY
  • 28
    8026-131 SCREW, CAP
    SCREW, CAP
  • 29
    0645-367 RING GEAR
    RING GEAR
  • 30
    1623-128 SCREW, MACHINE, SOCKET HEAD
    SCREW, MACHINE, SOCKET HEAD
  • 31
    0123-053 WASHER
    WASHER
  • 32
    1686-124 WIRE, GROUND
    WIRE, GROUND
  • 33
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
