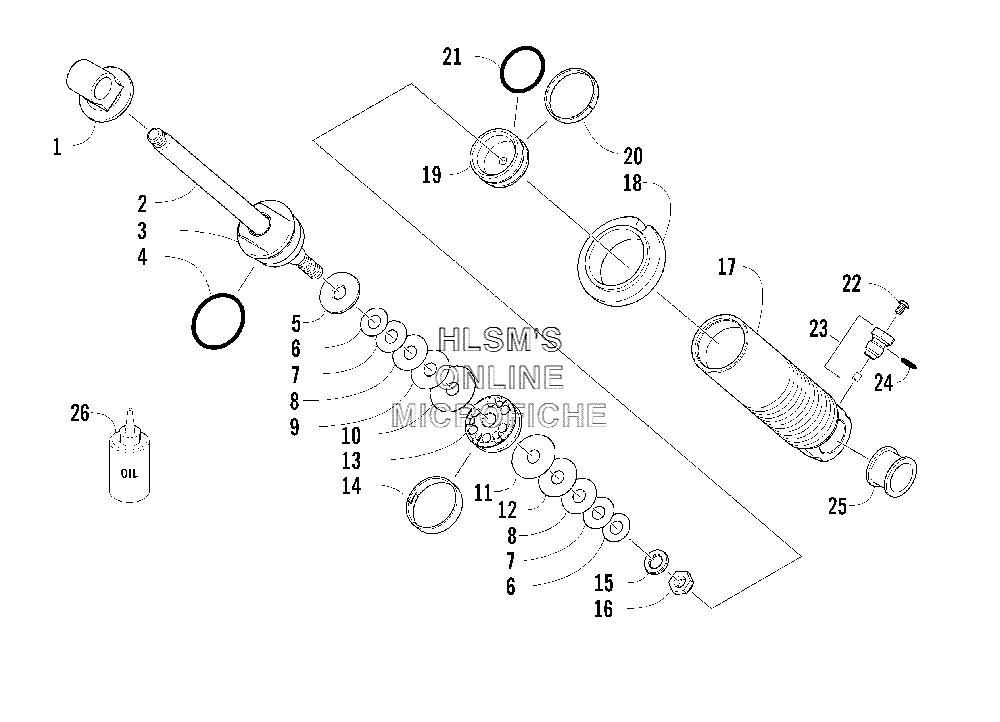

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Sabercat 700 EFI EXT (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
-1704-142 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-796 EYELET, SHOCKEYELET, SHOCK
-
22604-365 ROD, SHOCKROD, SHOCK
-
31703-453 CAP, SHOCK (INC. 4)CAP, SHOCK (INC. 4)
-
41604-271 O-RINGO-RING
-
51604-272 WASHER, TOP OUTWASHER, TOP OUT
-
62603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
72603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
82603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
92603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
102603-134 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
112603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
122603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
130603-953 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
141604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
151604-273 WASHER, BACKUPWASHER, BACKUP
-
160623-696 NUT, LOCKNUT, LOCK
-
172604-596 BODY, SHOCKBODY, SHOCK
-
181603-911 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
190704-791 PISTON, FLOATING (INC. 20, 21)PISTON, FLOATING (INC. 20, 21)
-
202604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
212604-152 O-RINGO-RING
-
220624-546 SCREW, MACHINESCREW, MACHINE
-
230704-796 VALVE, PRESSURE (INC. 24)VALVE, PRESSURE (INC. 24)
-
242604-162 O-RING, VALVEO-RING, VALVE
-
252604-156 BUSHING, SHOCKBUSHING, SHOCK
-
261639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
