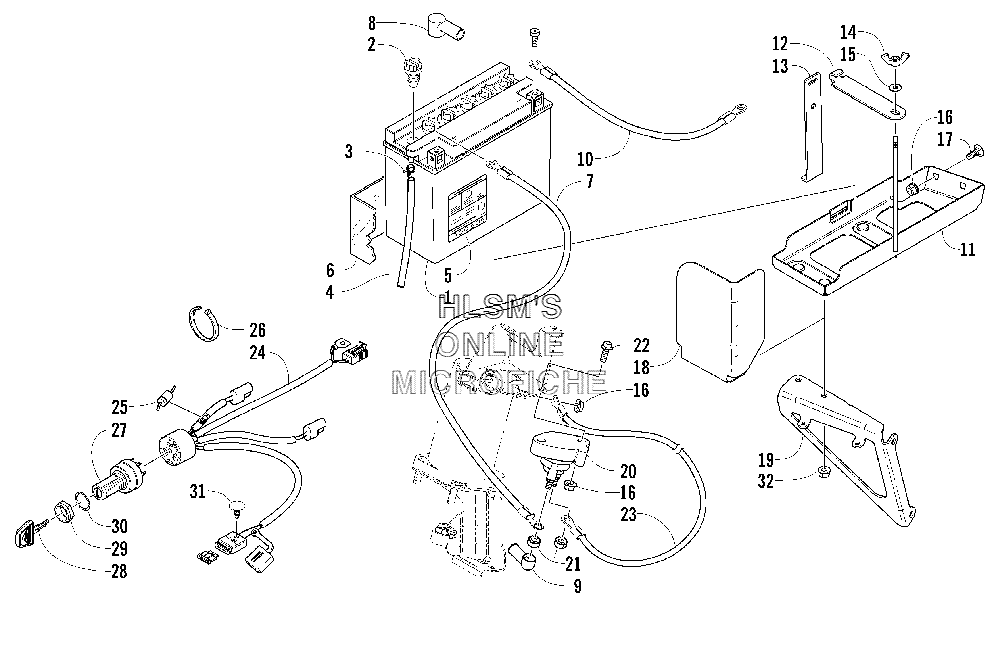

BATTERY- SOLENOID- AND CABLES для Arctic Cat Sabercat 500 LX (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
10745-059 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
20645-246 CAP, BATTERYCAP, BATTERY
-
30645-152 CLAMP, HOSECLAMP, HOSE
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-457 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100645-136 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
110745-250 TRAY, BATTERYTRAY, BATTERY
-
120645-243 STRAP, BATTERY (TOP)STRAP, BATTERY (TOP)
-
130645-311 STRAP, BATTERY (SIDE)STRAP, BATTERY (SIDE)
-
140623-325 NUT, WINGNUT, WING
-
158050-217 WASHERWASHER
-
168048-366 NUT, LOCKNUT, LOCK
-
178011-039 BOLT, CARRIAGEBOLT, CARRIAGE
-
180745-220 SHIELD, HEATSHIELD, HEAT
-
190745-204 BRACKET, MOUNTING, BATTERY TRAYBRACKET, MOUNTING, BATTERY TRAY
-
200445-036 SOLENOIDSOLENOID
-
210623-038 NUT W/WASHERNUT W/WASHER
-
228020-043 SCREW, CAPSCREW, CAP
-
230645-467 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
328047-366 NUT, LOCKNUT, LOCK
