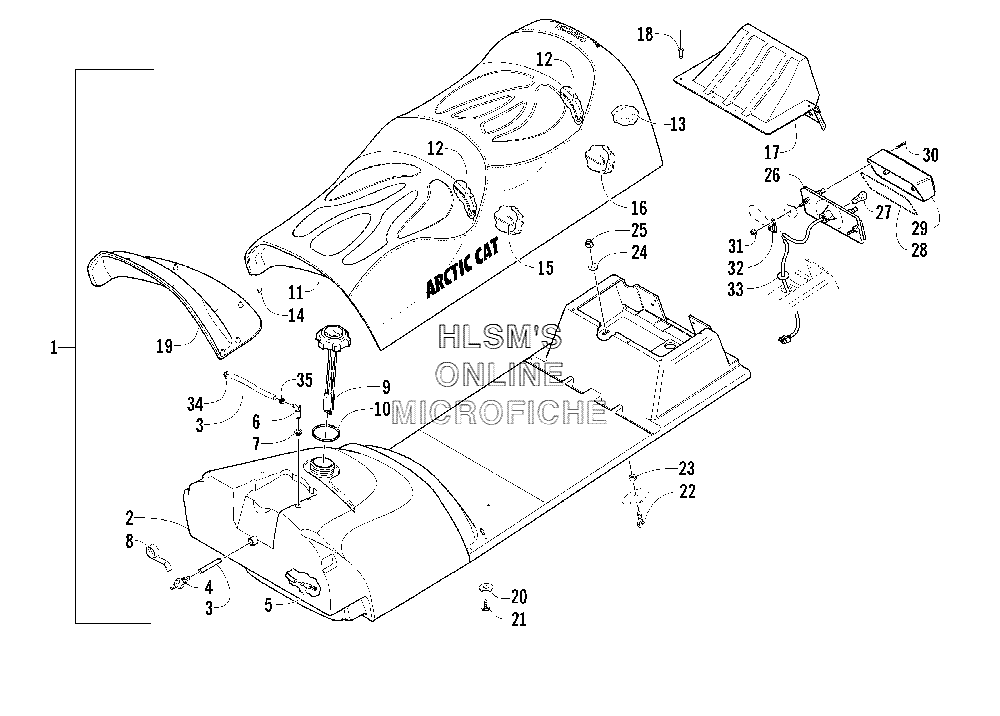

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat Panther 570 INTERNATIONAL - 2005 года выпуска`
-
№АртикулНазвание
-
11718-751 COMPLETE SEAT ASSEMBLY (INC. 2, 21)COMPLETE SEAT ASSEMBLY (INC. 2, 21)
-
20770-691 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
36101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
36101-009 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
41670-173 OUTLET, TANKOUTLET, TANK
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
61670-494 VENT, GAS TANKVENT, GAS TANK
-
71670-325 GROMMETGROMMET
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-658 CAP, GAS TANK WITH GAUGE (INC. 10)CAP, GAS TANK WITH GAUGE (INC. 10)
-
100109-733 SEAL, TANK CAPSEAL, TANK CAP
-
112706-630 COVER, SEAT (INC. 12)COVER, SEAT (INC. 12)
-
123606-363 WIRE, SEATWIRE, SEAT
-
130716-991 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
140624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
152606-943 WIRE, SEATWIRE, SEAT
-
162606-942 WIRE, SEATWIRE, SEAT
-
171606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
180623-853 RIVETRIVET
-
191606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
208050-217 WASHERWASHER
-
210623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
228020-040 SCREW, CAPSCREW, CAP
-
238048-366 NUT, LOCKNUT, LOCK
-
240623-184 WASHERWASHER
-
250123-108 NUT, CAPNUT, CAP
-
260609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
270109-460 BULBBULB
-
280609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
290609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
300609-093 SCREW, RETAININGSCREW, RETAINING
-
310623-038 NUT W/WASHERNUT W/WASHER
-
323002-964 CLAMP, WIRECLAMP, WIRE
-
330617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
340623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
351623-233 CLAMP, HOSECLAMP, HOSE
