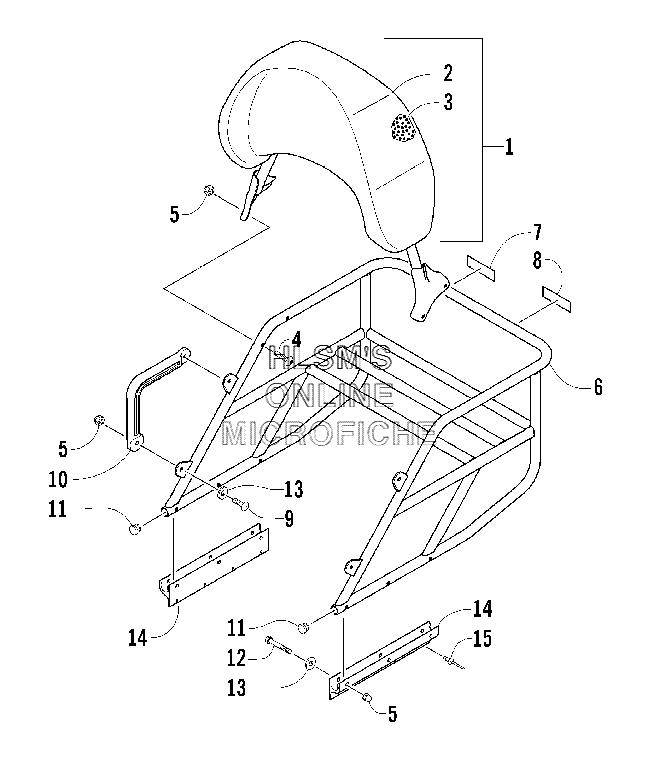

RACK AND BACKREST ASSEMBLY для Arctic Cat Panther 370 (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10716-677 BACKREST, COMPLETE (INC. 2, 3)BACKREST, COMPLETE (INC. 2, 3)
-
20716-679 COVER, BACKRESTCOVER, BACKREST
-
30716-705 FOAM, BACKRESTFOAM, BACKREST
-
48017-584 SCREW, MACHINESCREW, MACHINE
-
50123-108 NUT, CAPNUT, CAP
-
60706-676 RACKRACK
-
71611-568 DECAL, CAUTION, MAX PAYLOAD (ENGLISH)DECAL, CAUTION, MAX PAYLOAD (ENGLISH)
-
81611-569 DECAL, CAUTION, MAX PAYLOAD (FRENCH)DECAL, CAUTION, MAX PAYLOAD (FRENCH)
-
98017-581 SCREW, MACHINESCREW, MACHINE
-
100606-750 HANDGRIP, BACKRESTHANDGRIP, BACKREST
-
110606-487 CLOSURE, TUBECLOSURE, TUBE
-
120623-032 SCREW, CAPSCREW, CAP
-
138050-217 WASHERWASHER
-
142706-318 BRACKET, MOUNTING, RACKBRACKET, MOUNTING, RACK
-
158060-506 RIVETRIVET
