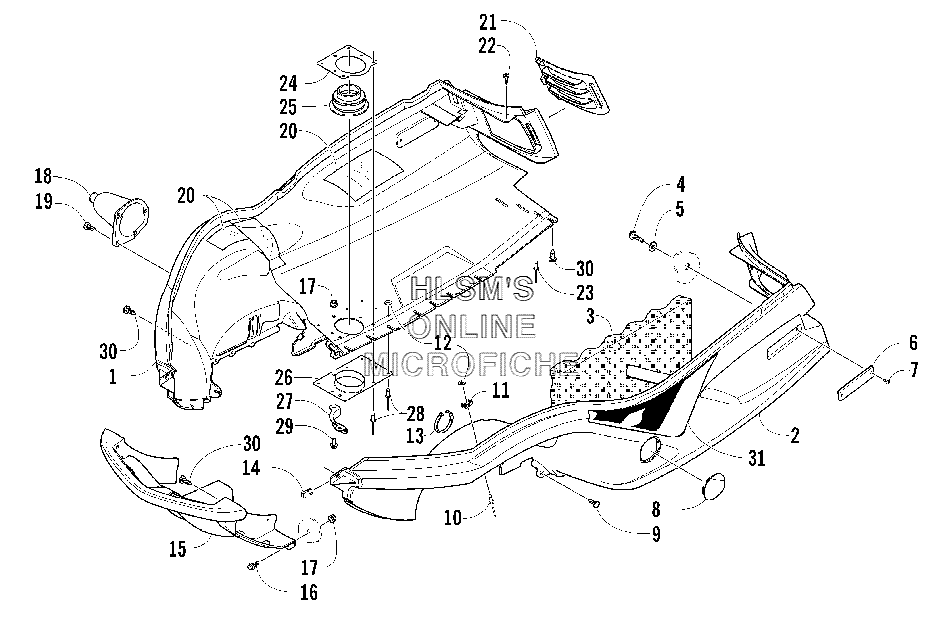

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Panther 370 (BLACK) INTERNATIONAL - 2005 года выпуска`
-
№АртикулНазвание
-
11706-110 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-141 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
60606-526 REFLECTOR, FRONT (AMBER)REFLECTOR, FRONT (AMBER)
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
81606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
90623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
108060-506 RIVETRIVET
-
110623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
120123-149 WASHERWASHER
-
130123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
140623-427 NUT, UNUT, U
-
151606-949 BUMPER (FRONT)BUMPER (FRONT)
-
168020-040 SCREW, CAPSCREW, CAP
-
178048-366 NUT, LOCKNUT, LOCK
-
180605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
180605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
190623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200619-206 TAPE, FOILTAPE, FOIL
-
211606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
211606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
220623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
238061-508 RIVETRIVET
-
240712-881 RING, EXHAUST OUTLET (UPPER)RING, EXHAUST OUTLET (UPPER)
-
251612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
260712-880 RING, EXHAUST OUTLET (LOWER)RING, EXHAUST OUTLET (LOWER)
-
270712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
288060-508 RIVETRIVET
-
298020-039 SCREW, CAPSCREW, CAP
-
301623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
316611-112 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
316611-113 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
