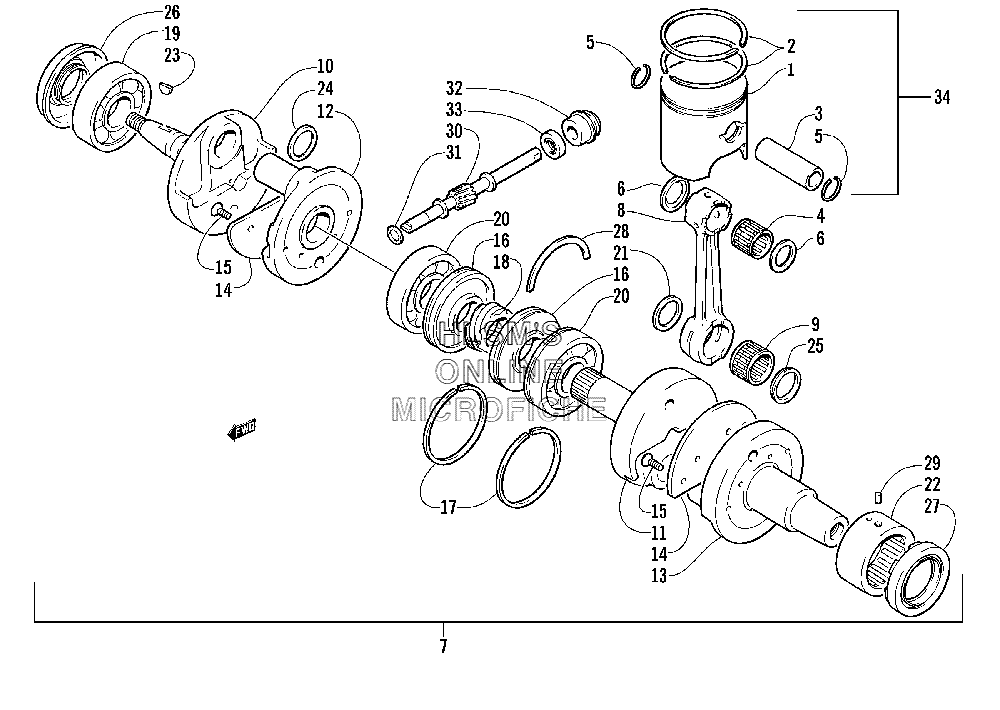

PISTON AND CRANKSHAFT для Arctic Cat Pantera 550 - 2005 года выпуска`
-
№АртикулНазвание
-
23006-686 RING ASSEMBLYRING ASSEMBLY
-
33003-767 PIN, PISTONPIN, PISTON
-
43003-433 BEARING, PISTON PINBEARING, PISTON PIN
-
53003-439 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-209 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-752 CRANKSHAFT ASSEMBLY (INC. 8, 22 AND 24, 25)CRANKSHAFT ASSEMBLY (INC. 8, 22 AND 24, 25)
-
83005-112 ROD, CONNECTINGROD, CONNECTING
-
93003-784 BEARINGBEARING
-
103003-812 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
113005-753 CRANKSHAFT (CENTER)CRANKSHAFT (CENTER)
-
123005-232 WHEEL, CRANKWHEEL, CRANK
-
133005-231 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
143003-815 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
153004-372 SCREW, MACHINESCREW, MACHINE
-
163004-698 RACE SEAL (MIDDLE)RACE SEAL (MIDDLE)
-
173003-817 RINGRING
-
183005-202 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
193005-210 BEARING, CRANKSHAFT (RIGHT)BEARING, CRANKSHAFT (RIGHT)
-
203003-164 BEARING, CRANKSHAFT (CENTER)BEARING, CRANKSHAFT (CENTER)
-
213003-782 WASHERWASHER
-
223003-805 BEARING, CRANKSHAFT (LEFT)BEARING, CRANKSHAFT (LEFT)
-
233004-540 KEYKEY
-
243003-783 WASHERWASHER
-
253003-933 WASHER, CRANK PINWASHER, CRANK PIN
-
263005-188 SEAL, OIL (RIGHT)SEAL, OIL (RIGHT)
-
273003-759 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
283003-216 C, RINGC, RING
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-324 GEAR, DRIVEN, OIL PUMPGEAR, DRIVEN, OIL PUMP
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323005-909 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
343006-685 PISTON ASSEMBLY (INC. 1, 2 AND 5)PISTON ASSEMBLY (INC. 1, 2 AND 5)
