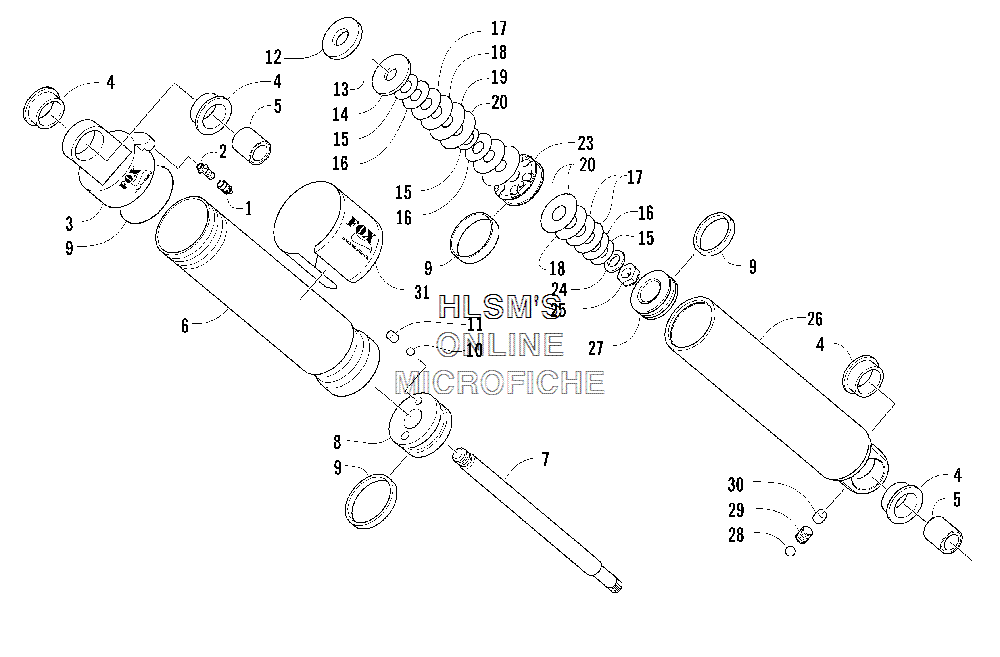

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat M7 EFI Limited - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    1703-716 SHOCK ABORBER
    SHOCK ABORBER
  • 1
    2603-327 CAP, AIR VALVE
    CAP, AIR VALVE
  • 2
    2603-326 VALVE, AIR
    VALVE, AIR
  • 3
    2603-418 END CAP, SHOCK
    END CAP, SHOCK
  • 4
    0603-955 BUSHING, SHOCK
    BUSHING, SHOCK
  • 5
    1603-209 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 6
    2603-412 BODY, SHOCK (UPPER)
    BODY, SHOCK (UPPER)
  • 7
    2603-416 ROD, SHOCK
    ROD, SHOCK
  • 8
    2603-333 CAP ASSEMBLY
    CAP ASSEMBLY
  • 9
    2604-796 KIT, SEAL/CAP REBUILD
    KIT, SEAL/CAP REBUILD
  • 10
    1604-315 BALL, BLEED
    BALL, BLEED
  • 11
    1603-940 SCREW
    SCREW
  • 12
    0603-386 BUMPER, INTERNAL
    BUMPER, INTERNAL
  • 13
    2603-474 SPACER
    SPACER
  • 14
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 15
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 16
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 17
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 18
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 19
    0603-345 VALVE, 1.250 X 0.006 IN.
    VALVE, 1.250 X 0.006 IN.
  • 20
    0603-346 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 21
    0603-342 VALVE, 1.100 X 0.006 IN.
    VALVE, 1.100 X 0.006 IN.
  • 22
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 23
    2603-309 PISTON, 0.093 IN., ORIFICE
    PISTON, 0.093 IN., ORIFICE
  • 24
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 25
    0603-301 NUT, CAP
    NUT, CAP
  • 26
    2603-414 BODY, SHOCK (LOWER)
    BODY, SHOCK (LOWER)
  • 27
    2603-417 PISTON, FLOATING
    PISTON, FLOATING
  • 28
    2603-337 BALL, AIR VALVE
    BALL, AIR VALVE
  • 29
    2603-338 SCREW, SET
    SCREW, SET
  • 30
    1604-428 PLUG, RUBBER, VALVE
    PLUG, RUBBER, VALVE
  • 31
    2603-429 DECAL, SHOCK
    DECAL, SHOCK
  • -
    2639-149 OIL, SHOCK, 6 QT CASE
    OIL, SHOCK, 6 QT CASE
  • -
    4639-012 FLUID, FLOAT SHOCK, 8 OZ
    FLUID, FLOAT SHOCK, 8 OZ
