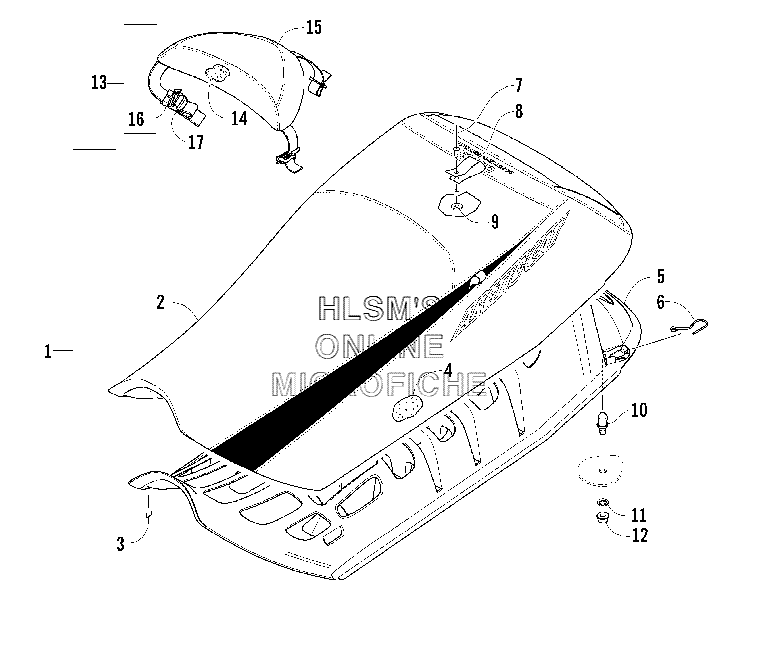

SEAT ASSEMBLY для Arctic Cat M7 EFI 162'' (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7998-027 COMPLETE SEAT ASSEMBLY (INC. 2, 9)
    COMPLETE SEAT ASSEMBLY (INC. 2, 9)
  • 2
    2706-687 COVER, SEAT
    COVER, SEAT
  • 3
    0624-528 STAPLE, SEAT COVER
    STAPLE, SEAT COVER
  • 4
    2706-647 FOAM, SEAT CUSHION
    FOAM, SEAT CUSHION
  • 5
    3606-430 SEAT, BASE
    SEAT, BASE
  • 6
    1623-393 CLIP, RETAINING, SEAT, BASE
    CLIP, RETAINING, SEAT, BASE
  • 7
    8061-506 RIVET
    RIVET
  • 8
    3606-813 STRAP, HOLD, DOWN, SEAT PAD
    STRAP, HOLD, DOWN, SEAT PAD
  • 9
    8050-127 WASHER
    WASHER
  • 10
    1623-198 STUD, LATCH, SEAT, BASE
    STUD, LATCH, SEAT, BASE
  • 11
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 12
    8048-426 NUT, LOCK
    NUT, LOCK
  • 13
    7998-026 PAD, SEAT (INC. 14, 17)
    PAD, SEAT (INC. 14, 17)
  • 14
    2706-698 FOAM, SEAT PAD
    FOAM, SEAT PAD
  • 15
    2706-697 COVER, SEAT PAD (INC. 16, 17)
    COVER, SEAT PAD (INC. 16, 17)
  • 16
    1623-348 CLIP, RETAINING, STRAP
    CLIP, RETAINING, STRAP
  • 17
    1623-347 CLIP, HOLD, DOWN, SEAT PAD
    CLIP, HOLD, DOWN, SEAT PAD
